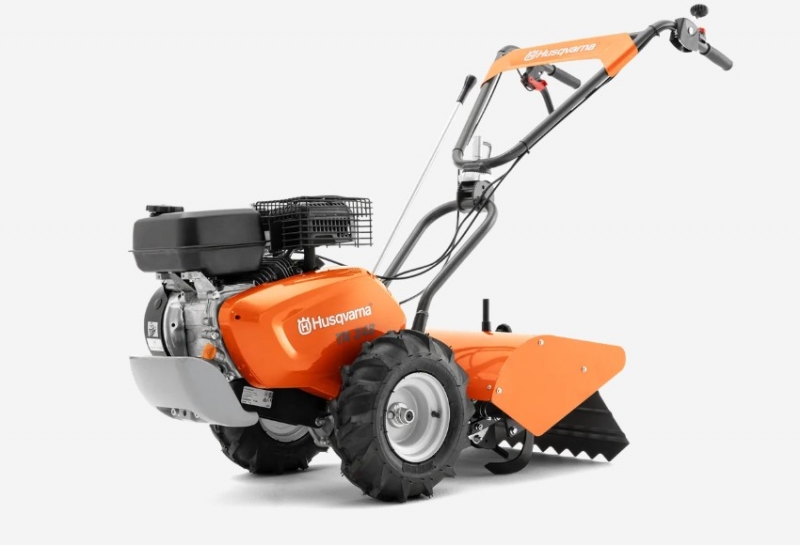

HUSQVARNA TR 348 Tiller
TR 348
48 cm Working width
212 cm³ Cylinder displacement
4kW Net power at preset rpm Energy1
The TR 348 is a light-weighted, compact and easy to use tiller with great manoeuvrability. Equipped with high-quality transmission and Heli coiled tines and 48 cm working width it offers both great performance and durability.
Features
Adjustable handlebar
Adjustable handlebar, both horizontaly and vertically, for best working position.
Drag bar
Easy-adjust drag bar, for different working conditions.
Foldable handlebar
For easy storage and transport.
Tine shield
Minimizes debris spray from the rotating tines.
Handlebar-mounted gear selection
Ergonomic handle with easy-access controls.
Reverse gearbox
Improves maneuverability and control.
Specification
| Engine |
TR 348 PETROL TILLER Rear tine tiller
Art no: 970 65 28‑01
|
| Engine name | R210 |
|---|---|
|
Net power at preset rpm Energy1
|
4 kW |
| Net power at preset rpm | 3,300 rpm |
| Air filter type | Oil bath |
| Fuel tank volume | 3.6 l |
| Power/fuel type | Petrol |
| Cylinder displacement | 212 cm³ |
| Emission | |
|
Exhaust emissions (CO₂ EU V)2
|
932.85 g/kWh |
| Equipment | |
| Rubber wheels | Included |
| Transport wheel/s | Not available |
| Foldable handlebar | Yes |
| Horizontally adjustable handlebar | Yes |
| Vertically adjustable handlebar | Yes |
| Capacity | |
| Working width | 48 cm |
| Working depth | 15 cm |
| Tine diameter | 300 mm |
| Number of tines | 4 |
| Rotational speed (min/max) min | 103 rpm |
| Rotational speed (min/max) max | 207 rpm |
| Cultivator type | Rear-tine |
| Transmission | |
| Transmission type | Chain/Gear |
| Transmission steps reverse | 1 |
| Transmission steps forward | 2 |
| Dimensions | |
| Weight (complete product w/o side packed articles) | 71 kg |
isclaimer:
- 1Net power at preset rpm Energy: Net power rating as per SAE J1349, at specified RPM as specified by the engine manufacturer
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine
