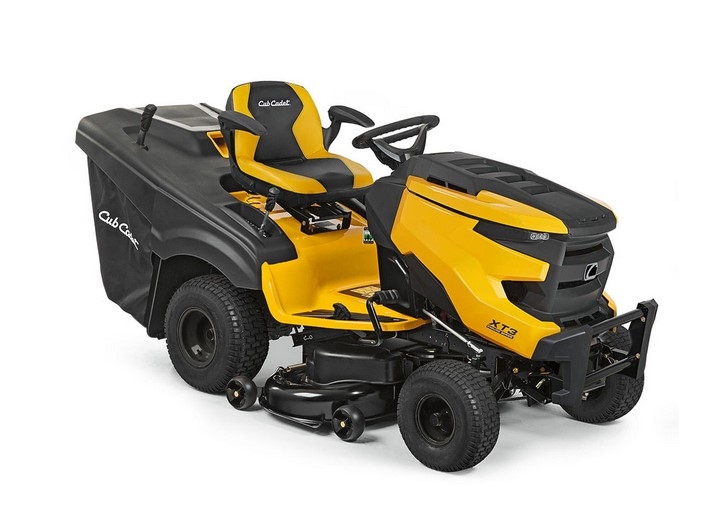

CUB CADET XT3 QR 106 Lawn Tractor
XT3 QR106
- Cutting width : 106
- Transmission : Hydrostatic, with differential lock
- Rated power kW/min -1 : 11,8 / 2.200
- Mowing area in m 2 /h: 8.000
- Grass bag capacity (l) : 360 l, with Anti-dust system.
EAN: 4008423917499
MODEL NO : 13AFA5TR603
ULTRA-RELIABLEV-BELT DESIGN
Thanks to reduced fan belt tension and ingenious, perfect fan beltguidance without twisted fan belts, the Cub Cadet mowing deck operateswith impressive stability and endurance.The XT2 PS117i and XT3 QS137 tractors are also equipped with a weldedmowing deck, which is even sturdier and more durable
| ENGINE |
XT3 QR106 |
|
| Engine |
Kawasaki |
| Engine displacement (cm3) |
726 |
| Rated power (kW/min-1) |
11,8 / 2.200 |
| Cylinders |
V-TWIN dual cylinder |
| Fuel tank capacity(l) |
11,4 |
|
| DRIVE SYSTEM |
|
|
| Transmission |
Hydrostatic, with differential lock |
| Air speed (max) |
stepless (f/r) |
| Control |
Foot pedal control |
| Cruise Control |
Standard |
|
| CUTTING SYSTEM |
|
|
| Mowing area (m2/h) |
8.000 |
| Cutting width |
106 |
| Cutting height |
25–100 |
| Number of blades |
2 |
| Deck Engagement |
Electric PTO |
| Deck height positions |
12 positions |
| Deck wheels |
4 balls deck wheels |
| Wash nozzle / mulching plug |
Standard /optional (196-550-000) |
|
| DISCHARGE SYSTEM |
|
|
| Grass bag capacity (l) / accessory no. |
360 l, with Anti dust system/– |
| Bag lever / hardtop |
Rounded ergo telescopic handle / Plastic |
| Bag full indicator / Grass Deflector |
with blade switch-off / optional (196-552A000) |
|
| FRAME |
|
|
| Front axle |
Heavy-duty cast-iron |
| Front bumper |
Bull Bar |
| Turning radius (cm) |
TIGHT TURN xTREME 17 |
| Wheels (front/rear) (Zoll) |
15 x 6 / 18 x 8,5 |
| Wheel bearings |
Sleeve bearings |
| Frame |
robotically-welded |
|
| ELECTRIC |
|
|
| Headlights |
LED |
|
| COMFORT |
|
|
| Seat type |
Cut & Sew, high back rest, with arm rests |
| Seat adjustment |
Lever, angled, 10 slide |
| Steering wheel |
Ergonomic with gentle touch |
| Tool box / Cub holder |
Standard / Standard |
| 12V Plug |
|
| Mow in reverse |
Standard |
| Battery charger |
– |
|
| DIMENSIONS |
|
|
| Noise values (dB) |
83,7 / 98,9 / 100 |
| Vibration value body (K-factor) (m/s2) |
0,2 / 0,5 |
| Vibration value hand-arm (K-factor) (m/s2) |
2,0 / 1,0 |
| Dimensions (L / W / H) (cm) |
267 / 110 / 118 |
| Weight net (kg) |
268 |
|
|
|
|
|
|
