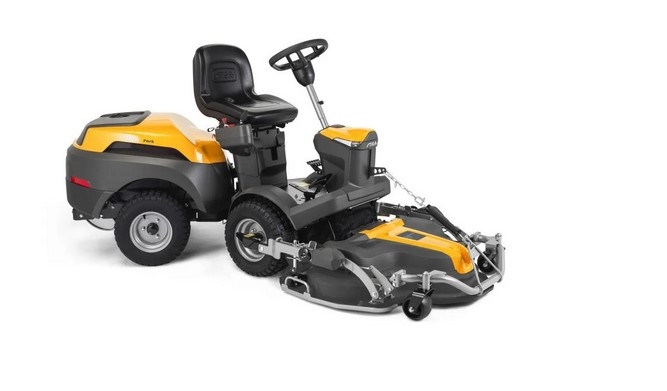

STIGA Park 500 WX petrol Front Mower

Park 500 WX

The Park 500 WX out-front mower is powered by a potent 586cc twin-cylinder STIGA ST 550 Twin engine, plus an all-wheel-drive Tuff Torq transaxle transmission. So no mowing task is too much trouble, even when tackling uneven surfaces. For light and easy manoeuvring, especially around obstacles, the Park 500 WX features 50:50 articulation with power steering. And its front-mounted deck includes extra-wide cutting choices from 95m to 125cm – while delivering a clear out-front view, easy access to corners, and accurate cutting along edges.
  • Ultra-powerful 586cc twin-cylinder STIGA ST 550 Twin engine
  • All-wheel-drive Tuff Torq transaxle transmission for better climbing
  • Front-mounted deck with extra-wide cutting from 95cm to 125cm
  • 50:50 articulation with power steering
  • 5-year warranty (T&C's Apply)
  • Cutting deck not included - Suggested Deck Combi 100 Q Plus

The Park 500 WX out-front mower effortlessly manages all mowing tasks and slopes, thanks to its ultra-powerful 586cc twin-cylinder STIGA ST 550 Twin engine and all-wheel-drive Tuff Torq transaxle transmission. The machine's easy to steer and manoeuvre around obstacles too, with its 50:50 articulation with power steering system and innovative chassis design. And with generous cutting widths from 95cm to 125cm, the Park 500 WX quickly covers a lot of ground. The Park 500 WX 's front-mounted deck gives you clear front views, effortless corner access and beautiful cuts along edges. And because it's a floating deck, the machine easily tackles uneven surfaces. To clean the deck in seconds, just activate the Quick Flip mechanism. A compact side dashboard puts you in control, featuring handy controls, including an electronic cutting-height adjuster. For your comfort, the mower's seat includes lower-back support and plenty of leg room. Whatever the surface or grass length, sit down, relax and let the Park 500 WX take care of everything. Trailer hitch included. Cutting deck NOT included but available to purchase separately.

A 5-year manufacturer's warranty is included with this machine (T&C's apply).

Features

Ultra-powerful engine and Tuff Torq transmission

586cc twin-cylinder STIGA ST 550 Twin engine, with 3-year standard warranty when registering online. Tuff Torq transaxle transmission and superior hydraulic circuit deliver improved climbing capacity, whatever the surface.

Flexible front-mounted deck with wide cutting

Better visibility, accessibility and cutting, even on uneven surfaces; Quick Flip mechanism for effortless cleaning; and a generous choice of cutting widths from 95cm to 125cm.

Unmatched 50:50 articulation with power steering

Power steering and chassis design make it easy to manoeuvre and avoid obstacles.

Comfortable rides every time

The seat comes with lower-back support, and there's plenty of leg room to get in and out.

Compact and intuitive dashboard

Easy-to-use dashboard with the controls you need, including quick start and electronic cutting-height adjustment.

Innovative bonnet for better cooling

Enables a higher air intake for more efficient cooling, lower working temperatures and smoother rides.

What's in the box

Park 500 WX
Petrol front mower
  • Trailer hitch
  • Ignition key (x2)
  • RAC

Specification

Lineup
Park
SKU
2F6130645/ST2
EAN/UPC
8008984852761
Level
Experience
Power source
Petrol
Battery capacity
30 Ah
Power
11.9 kW
Engine Brand
STIGA
Engine model
ST 550 Twin Powered by STIGA
Displacement
586 cm³
Engine rotation speed
3200 rpm
Battery Voltage
12 V
Choke
Manual
Engine cooling
Air
Fuel tank capacity
12 l
Easy refill
Yes
Engine Oil tank capacity
1.7 l
Suggested working area
7500 ㎡
Cutting width
95 - 125 cm
Deck lift
Manual
Cutting height adjustment
Electric
Service position
Yes
Traction
Four-wheel drive
Maximum speed forward
10 km/h
Transmission method
Pedal-operated
Transmission type
Hydrostatic
Steering wheel
Adjustable with spinner
Steering type
Articulated (50/50)
Power assisted steering
Hydraulic
Seat type
Comfort
Seat adjustment
Single lever
Seat adjustable underweight
No
Dashboard
Yes – compact
Front wheel size
16x7.50-8
Rear wheel size
16x7.50-8
Hour meter
No
Headlights
Led
PTO engagement
Electromagnetic
Auxiliary hydraulic outlets
No
Storage compartment
Seat column pocket
Cup holder
No
Trailer hitch kit
Included
Guaranteed sound power level (LwA) - dB(A)
100
Max vibration on driver's seat (m/s2)
0.7
Max vibration on steering wheels (m/s2)
2.6
Measured sound power level dB(A)
100
Measured sound pressure level at operator ear dB(A)
86
Weight
226 kg
Pack weight
269.5 kg
Product length
1960 mm
Product width
864 mm
Product height
1236 mm
