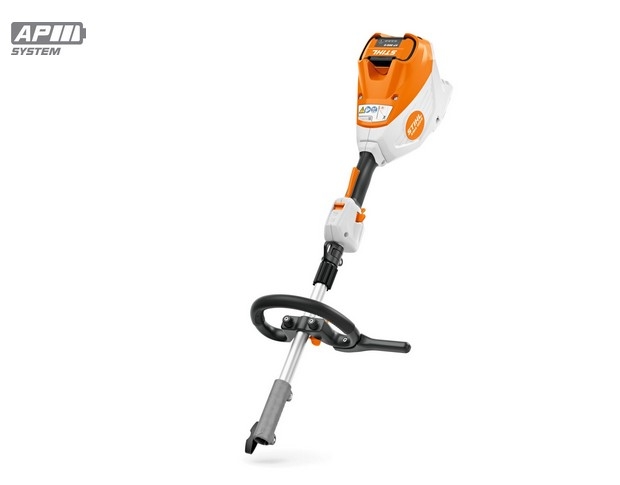

STIHL KMA 120 R Cordless KombiMotor - AP System

Professional, with adjustable loop handle
Tool only
KMA 120 R

  • Powerful cordless KombiMotor with high torque
  • Individual tool without battery and without charger
  • Low weight and easy to handle
  • Can be combined with all KombiTools (except FSB-KM)
  • For use in noise-sensitive areas
  • IPX4 rated for working in all weather conditions

    •

    The STIHL KMA 120 R is a battery-powered KombiEngine designed for professionals taking on a variety of gardening, landscaping and maintenance tasks throughout the working day. The KMA 120 R is battery powered meaning it has low noise emission – making it ideal for work in noise-sensitive areas such as schools, hospitals and quiet neighbourhoods. It’s powered by a 36-volt lithium-ion battery and is quiet, efficient and powerful enough to tackle a variety of tasks - whether it’s pruning, trimming, mowing, clearing or cutting! Compatible with all KombiTools (except FSB-KM), attaching and changing tools is made simple too – all you need to do is insert your desired tool into the shaft and tighten to secure it in place.

    Fitted with a new style loop handle that has a quick-mounting system, meaning you can adjust the handle to your height for an ergonomic working position. This handle also makes tackling tasks on slopes, around trees or on uneven terrains even easier. The KMA 120 R has a powerful brushless EC motor and speed-adjustment on the control handle, which can be set at 2 different speed settings. There is an ECO mode (level 1), for KombiTools suited to simple tasks such as trimming lawn edges, which results in lower energy consumption for extended battery life. And there is full speed mode (level 2), for KombiTools suited to tasks that need more power, such as clearing leaves which requires extra battery energy. However, depending on the KombiTool attached, the speed adjustment can also be infinitely variable.

    You can use any of the AP batteries with the KMA 120, however, working times will vary depending on which attachment you use with it. The AP 500 S battery will give you the longest working times but is also the heaviest of the AP batteries, so you may decide to choose a smaller capacity battery if you are going to be using the tool for a longer period of time, such as when hedge trimming.

    The KMA 120 R is supplied with a basic harness as standard. KombiTools sold separately.



    Features

    EC motor

    LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC motor enables you to work in an energy efficient manner. This engine also has a long service life.

    Battery compartment in the engine casing

    DIRECT POWER SUPPLY TO THE tool. With this tool, you can insert the required battery from the STIHL AP System directly into the engine housing. This increases your mobility and flexibility when working.

    Single-handed multi-function handle with SpeedCon

    EASY ADJUSTMENT OF tool PERFORMANCE. Quickly and conveniently adjust the speed of your tool to the respective work situation. Doing so reduces energy consumption at low speeds, and in this way extends the battery runtime. The practical control handle with speed control allows you to make the relevant adjustment without having to change your grip or pause work.

    Loop handle with bar

    FOR SAFE WORK IN SMALL SPACES. The loop handle ensures good manoeuvrability of your tool, even in confined spaces. The bar protects you by ensuring your feet and legs cannot come too close to blades or mowing heads during work.

    Quick-release coupling with clamping screw

    QUICK ASSEMBLY OF KOMBITOOLS. Thanks to the quick-release coupling, the various KombiTools for your tool can be connected and disconnected quickly and without tools.

    Detachable shaft

    FOR COMFORTABLE TRANSPORT AND STORAGE. Thanks to the detachable shaft, you can quickly dismantle your tool for easier transport, and also store it in a space-saving manner. You do not need any tools to disassemble the shaft.

    Constant power

    Battery-powered tools from STIHL have constant power, meaning the performance of your battery tool will not decrease during work as the battery discharges. Intelligent electronics means your tool will work with consistently high power until there is no energy left in the battery.

    IPX4 Certified

    SPLASHWATER PROTECTION. The AP 200 S is IPX4 certified thanks to the encapsulated electronics and sealing of each individual cell. It means that the battery is protected against splashwater from all sides and can be used in rainy conditions.









    Technical details

    Rated voltage 36 V
    Weight 3.5 kg
    Length to coupling sleeve 93 cm 1)
    Battery working time AP 300 S (Power level 1) up to 45 min
    Battery system AP


    1)Basic device to socket

    Kombitools



      AP 200 S AP 300 S AP 500 S AR 2000 L AR 3000 L
    FS-KM brushcutter 15 - 30 mins1 25 - 50 mins1 30 - 60 mins1 90 - 180 mins1 130 - 270 mins1
    MB-KM brushcutter 35 - 60 mins1 55 - 100 mins1 60 - 120 mins1 130 - 270 mins1 180 - 360 mins1
    HL-KM 0° long-reach hedge trimmer
    		 90 - 130 mins1 160 - 240 mins1 190 - 290 mins1 560 - 860 mins1 840 - 1290 mins1
    HL-KM 145°long-reach hedge trimmer
    		 90 - 130 mins1 160 - 240 mins1 190 - 290 mins1 560 - 860 mins1 840 - 1290 mins1
    FH-KM 145° scrub cutter
    		 90 - 130 mins1 160 - 240 mins1 190 - 290 mins1 560 - 860 mins1 840 - 1290 mins1
    BG-KM blower 15 - 25 mins1 25 - 50 mins1 30 - 55 mins1 75 - 175 mins1 110 - 260 mins1
    HT-KM pole pruner 25 - 50 mins1 40 - 85 mins1 45 - 100 mins1 130 - 300 mins1 200 - 450 mins1
    KB-KM bristle brush 30 - 35 mins1 50 - 60 mins1 60 - 70 mins1 180 - 210 mins1 270- 320 mins1
    BF-KM pick tine 30 - 35 mins1 50 - 60 mins1 60 - 70 mins1 180 - 210 mins1 270- 320 mins1
    FCS-KM straight shaft edge trimmer 20 - 30 mins1 30 - 45 mins1 35 - 55 mins1 100 - 170 mins1 150 - 250 mins1
    FCB-KM edge trimmer 20 - 30 mins1 30 - 45 mins1 35 - 55 mins1 100 - 170 mins1 150 - 250 mins1
    RG-KM rotary cutting head 26 - 29 mins1 45 mins1 54 mins1



    1) Full speed mode - ECO mode
