STIHL KMA 80 R Cordless KombiMotor - AK System

Powerful, for home gardens
Tool only

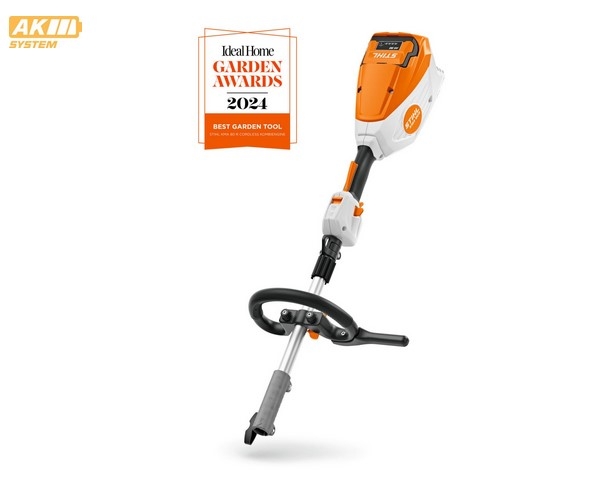

KMA 80 R

  • Powerful cordless KombiMotor with high torque
  • Individual tool without battery and without charger
  • Low weight and easy to handle
  • Can be combined with all KombiTools (except FSB-KM)
  • For use in noise-sensitive areas
  • Two power levels for energy-efficient and low-noise work

    • The STIHL KMA 80 R is the first battery-powered KombiEngine in the AK System of garden tools and is designed for use in home gardens. It’s powered by a 36-volt lithium-ion battery and is quiet, efficient and powerful enough to tackle a variety of garden tasks - whether it’s pruning, trimming, mowing, clearing or cutting! Compatible with all KombiTools (except FSB-KM), attaching and changing tools is made simple too – all you need to do is insert your desired tool into the shaft and tighten to secure it in place.

    Fitted with a new style loop handle that has a quick-mounting system, meaning you can adjust the handle to your height for an ergonomic working position. This handle also makes tackling tasks on slopes, around trees or on uneven terrains even easier. The KMA 80 R has a powerful brushless EC motor and speed-adjustment on the control handle, which can be set at 2 different speed settings. There is an ECO mode (level 1), for KombiTools suited to simple tasks such as trimming lawn edges, which results in lower energy consumption for extended battery life. And there is full speed mode (level 2), for KombiTools suited to tasks that need more power, such as clearing leaves which requires extra battery energy. However, depending on the KombiTool attached, the speed adjustment can also be infinitely variable.



    You can use any of the AK batteries with the KMA 80, however, working times will vary depending on which attachment you use with it. The recommended AK 30 battery will give you the longest working times but is also the heaviest of the AK batteries, so you may decide to choose a smaller capacity battery if you are going to be using the tool for a longer period of time, such as when hedge trimming.

    The KMA 80 R is supplied with a basic harness as standard. KombiTools sold separately.



    Features

    Battery compartment in the engine casing

    DIRECT POWER SUPPLY TO the tool. With this tool, you can insert the required battery from the STIHL AP System directly into the engine housing. This increases your mobility and flexibility when working.

    EC engine

    LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC engine enables you to work in an energy efficient manner. This engine also has a long service life.

    Single-handed multi-function handle with Speed Con


     Quickly and conveniently adjust the speed of your tool to the respective work situation. Doing so reduces energy consumption at low speeds, and in this way extends the battery runtime. The practical control handle with speed control allows you to make the relevant adjustment without having to change your grip or pause work.

    Loop handle with bar

    FOR SAFE WORK IN SMALL SPACES. The loop handle ensures good manoeuvrability of your tool, even in confined spaces. The bar protects you by ensuring your feet and legs cannot come too close to blades or mowing heads during work.

    Quick-release coupling with clamping screw

    QUICK ASSEMBLY OF KOMBITOOLS. Thanks to the quick-release coupling, the various KombiTools for your tool can be connected and disconnected quickly and without tools.

    Detachable shaft

    FOR COMFORTABLE TRANSPORT AND STORAGE. Thanks to the detachable shaft, you can quickly dismantle your tool for easier transport, and also store it in a space-saving manner. You do not need any tools to disassemble the shaft.

    Constant power

    Battery-powered tools from STIHL have constant power, meaning the performance of your battery tool will not decrease during work as the battery discharges. Intelligent electronics means your tool will work with consistently high power until there is no energy left in the battery.


    Technical details

    Rated voltage 36 V
    Weight 3.4 kg
    Length to coupling sleeve 92 cm 1)
    Battery system AK System

    1)Basic device to socket

    KombiTools



      AK 10 AK 20 AK 30
    FS-KM brushcutter 5 - 10 mins1 10 - 20 mins1 15 - 25 mins1
    MB-KM brhcutter 10 - 20 mins1 20 - 40 mins1 30 - 50 mins1
    HL-KM 0° long-reach hedge trimmer 35 - 50 mins1 70 - 100 mins1 90 - 130 mins1
    HL-KM 145° long-reach hedge trimmer
    		 35 - 50 mins1 70 - 100 mins1 90 - 130 mins1
    FH-KM 145° scrub cutter
    		 35 - 50 mins1 70 - 100 mins1 90 - 130 mins1
    BG-KM blower 5 - 10 mins1 10 - 20 mins1 15 - 25 mins1
    HT-KM pole pruner 10 - 20 mins1 20 - 40 mins1 30 - 50 mins1
    KB-KM bristle brush 10 - 15 mins1 25 - 30 mins1 30 - 35 mins1
    BF-KM pick tine 10 - 15 mins1 25 - 30 mins1 30 - 35 mins1
    FCS-KM straight shaft edge trimmer 8 - 12 mins1 15 - 25 mins1 20 - 30 mins1
    FCB-KM edge trimmer 8 - 12 mins1 15 - 25 mins1 20 - 30 mins1
    RG-KM rotary cutting hea 10 - 12 mins1 21 - 23 mins1 26 - 29 mins1



    1) Full speed mode - ECO mode
