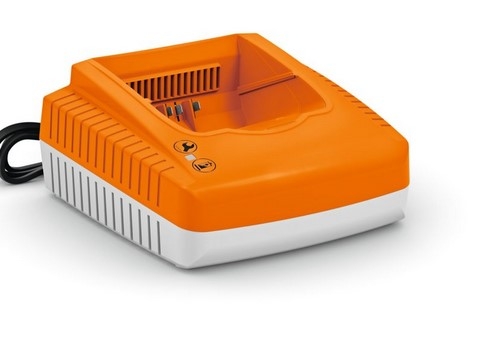

STIHL AL 500 Hi-Speed Charger

For AP System batteries
AL 500

230 V hi-speed quick charger, recommended for STIHL AP System batteries (can also be used with AK System batteries). With operating mode indicator and active battery cooling. Cable tie with Velcro strap. The charger can be wall mounted if required.

AP System charge times:

  • AP 100 battery in 45 minutes
  • AP 200 battery in 45 minutes
  • AP 300 battery in 35 minutes
  • AP 300 S battery in 45 minutes
  • AP 500 S battery in 55 minutes
  • AR 2000 L battery in 150 minutes
  • AR 3000 L battery in 220 minutes
  • Safe battery charging thanks to the active cooling system
  • 12 A charging current for very short charging times
  • With a jig for practical wall mounting and cable winding

  • Technical details

    Charging time AR 1000 120 min 1)
    Weight 1.3 kg
    Charging time AR 2000 130 min 1)
    Charging time AR 3000 160 min 1)
    Rated voltage 220-240 V
    Power output 0.6 kW
    Weight 1.3 kg
    Rated current 2.6 A
    Protection class II
    Charging current 12 A

    1)Up to 100 % capacity
