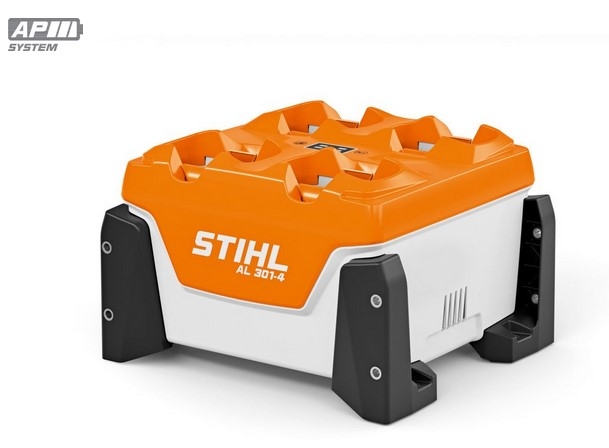

STIHL AL 301-4 Multiple Battery Charger

For charging multiple AP batteries at once
AL 301-4

230 V. Multiple battery charger for sequential charging of up to four AP batteries or AR L batteries with an AR L connecting cable and AP adapter.Cannot be used with AK batteries.Can be secured either to the wall or on a shelf, or permanently installed in a vehicle. Energy supply via an external feed. With operating mode indicator via LED and active battery cooling. AR L connecting cable and AP adapter for charging AR L backpack batteries not included in the scope of delivery.

AP System charge times:

  • AP 100 battery in 45 minutes
  • AP 200 battery in 55 minutes
  • AP 300 battery in 75 minutes
  • AP 300 S battery in 90 minutes
  • AP 500 S battery in 90 minutes
  • AR 2000 L battery in 290 minutes
  • AP 3000 L battery in 430 minutes
  • Multiple battery charger for the STIHL AP system
  • Can be used in a vehicle, workshop or at home
  • Sequential charging of up to 4 batteries
  • Space-saving - can be lined up and stacked
  • View charge levels with the push of a button

  • Technical details

    Rated voltage 220-240 V
    Charging current 6.5 A
    Weight 4.4 kg
    Protection class II
    Rated current 2.3 A
    Weight 4.4 kg
    Power output 0.3 kW
