STIHL AL 101 Standard Charger

For AK System and AP System batteries

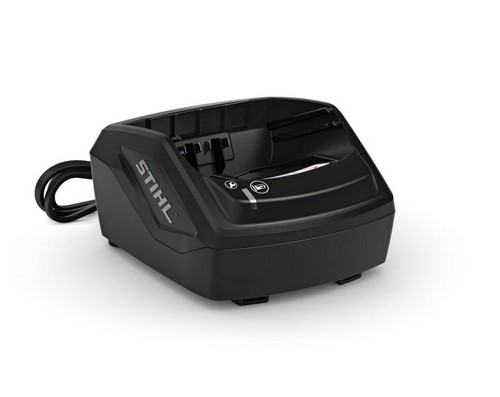

AL 101 charger

230 V charger, recommended for STIHL AK System batteries (can also be used with AP System batteries). With operating mode indicator (LED) and passive battery cooling. Cable tie with Velcro strap. The charger can be wall mounted if required.

AK System charge times:

  • AK 10 battery in 95 minutes
  • AK 20 battery in 180 minutes
  • AK 30 battery in 205 minutes

AP System charge times:

  • AP 100 battery in 100 minutes
  • AP 200 battery in 200 minutes
  • AP 300 battery in 250 minutes
  • AP 300 S battery in 300 minutes
  • AP 500 S battery in 355 minutes
  • Compatible with all STIHL AK and AP System batteries
  • Operating state indicated by LEDs at all times
  • Cable tie with Velcro tape
  • Wall-mounting option

  • Technical details

    Rated voltage 220-240 V
    Weight 0.7 kg
    Rated current 0.7 A
    Charging time AK 10 battery 95 min 1)
    Charging time AK 20 battery 180 min 2)
    Charging time AK 30 battery 205 min 2)
    Charging time AP 200 200 min 3)
    Charging time AP 300 250 min 3)
    Charging current 1.6 A
    Power output 0.1 kW
    Protection class II
    •
