STIHL AP 500 S Battery

Lithium-ion 337 WH

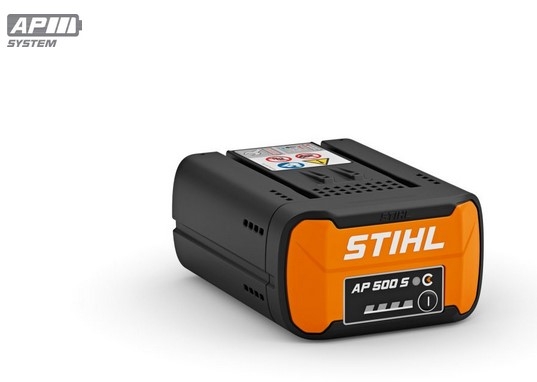

AP 500 S

High capacity 36 V, 8.8 Ah Lithium-Ion battery. The AP 500 S is the most powerful AP battery from STIHL. Featuring power laminate technology which means it has double the number of charging cycles of a typical STIHL AP system battery with cylindrical cells. With approximately 253 charging cycles per year (253 working days, excluding weekends and bank holidays in UK) the battery will last close to 10 years without the typical capacity loss of the battery cells.

The AP 500 S has an integrated Bluetooth® interface for STIHL connected, so just like our AR L backpack batteries, it can be linked to the STIHL connected system 5 and managed like a power tool. This allows you to see the charge status via the STIHL connected App and monitor its daily usage. The battery has an integrated LED charge indicator, clearly displaying as and when the battery needs charging too.

Compatible with the AL 101, AL 301, AL 301-4 and AL 500 charger unit. Click on the technical data tab of individual products to learn more about machine run times.

  • 337 Wh battery power, with a weight of 2.0 kg
  • Increased number of charging cycles thanks to Power Laminate technology
  • Compatible with all tools in the STIHL AP System
  • 4 practical LEDs for indicating charging status and power content
  • IPX4 rated for working in all weather

  • Technical details

    Rated voltage 36 V
    Battery weight 2 kg
    Capacity 337 Wh 1)
    Capacity 8.8 Ah
    Nominal cell capacity (according to manufacturer) 9.36 A·h
    Battery cell technology Lithium Ion
    Charge voltage 41.9 V
    Temperature range 5-40 °C
    Discharge temperature range -10-50 °C

    1)Energy content according to cell manufacturer specification. To increase the service life, the energy content available in the actual application is lower.
