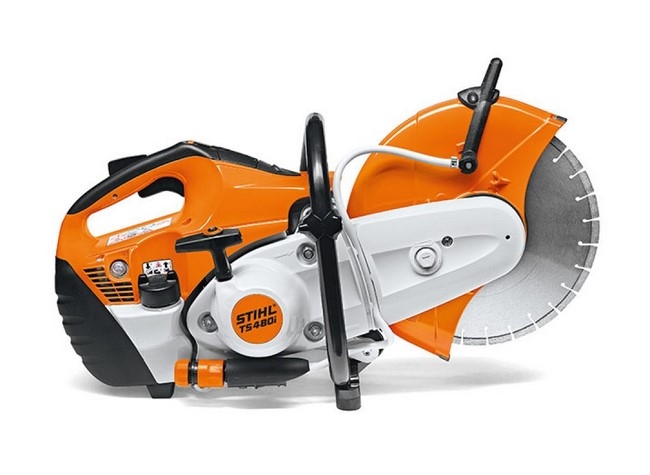

STIHL TS 480i Petrol Cut-off Machine
Innovative 3.9kw with electronically controlled fuel injection
TS 480i
Unique STIHL Injection engine technology for 300 mm cutting wheels. Easy to start; powerful torque. Fully-equipped with long-life air filter system and electronic water control. Can be operated by hand or with the FW 20 cart. Supplied with abrasive cutting wheel.
Low-maintenance filter system thanks to cyclone routing
Cut-off machine with electronically controlled fuel injection and 2-MIX engine
Precise cut guidance with the STIHL anti-vibration system
Electronic water control for easy water supply metering
Easy to start using STIHL ElastoStart and the decompression valve
Perfect running behaviour and high torque thanks to the STIHL Injection system
For 300 mm cutting wheels
Features
REDUCED-EMISSION ENGINE TECHNOLOGY
MANUAL FUEL PUMP (PURGER)
STIHL ELECTRONIC WATER CONTROL (A)
PRE-SEPARATION AIR FILTRATION SYSTEM
SEMI AUTOMATIC DRIVE BELT TENSIONING
MAGNESIUM GUARD
Technical details
| Capacity |
72.2 cm³ |
| Weight |
10.01 1) |
| Performance |
3.9 kW |
| Tank volume |
0.72 l |
| Sound pressure level |
98 dB(A) 2) |
| Power output |
3.9/5.3 kW/bhp |
| Weight |
10 kg 3) |
| Sound pressure level |
98 dB(A) 4) |
| Sound power level |
112 dB(A) 4) |
| Vibration levels left/right |
2.2/2.2 m/s2 5) |
| Cutting wheel |
300 / 12 mm/in |
| Sound power level |
112 dB(A) 2) |
| EPA Certified fuel consumption |
2.11 l/h |
| Vibration value, left |
2.2 m/s2 6) |
| Vibration value, right |
2.2 m/s2 6) |
| CO² |
748 g/kWh |
