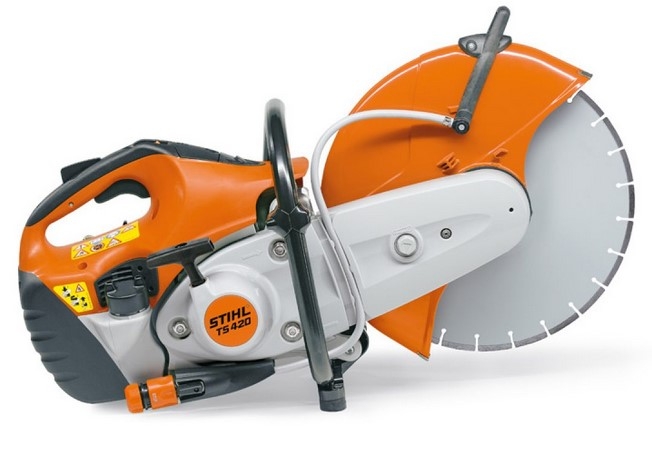

STIHL TS 420 Petrol Cut-off Machine

Compact and robust 3.2kW ( 350mm cutting wheel)
TS 420

Long-life filter system with cyclone pre-separation makes on site maintenance unnecessary. Extremely low vibration levels (3.9m/s²). High performance engine with stratified charge system. Compact design and optimised balance for excellent cutting and guide characteristics. For use with 350mm cutting wheel. ElastoStart, primer pump and decompression valve. Bayonet filler cap for tool free opening. Can be hand held or used with the FW 20 cart. Supplied with abrasive cutting wheel.

  • All-purpose, user-friendly cut-off machine
  • For use in road construction and landscaping
  • Precise cut guidance with the STIHL anti-vibration system
  • Low-maintenance filter system thanks to cyclone routing
  • For 350 mm cutting wheels

    • Features

    REDUCED-EMISSION ENGINE TECHNOLOGY
    MANUAL FUEL PUMP (PURGER)
    WATER SUPPLY
    PRE-SEPARATION AIR FILTRATION SYSTEM
    ANTI-VIBRATION SYSTEM
    ERGONOMIC GRIP POSITION

    SEMI AUTOMATIC DRIVE BELT TENSIONING

    Technical details

    Capacity 66.7 cm³
    Weight 9.75 1)
    Performance 3.2 kW
    Tank volume 0.71 l
    Sound pressure level 98 dB(A) 2)
    Power output 3.2/4.4 kW/bhp
    Weight 9.6 kg 3)
    Sound pressure level 98 dB(A) 4)
    Sound power level 109 dB(A) 4)
    Vibration levels left/right 3.9/3.9 m/s2 5)
    Cutting wheel 35 cm / 14" mm/in
    Sound power level 109 dB(A) 2)
    EPA Certified fuel consumption 2.048 l/h
    Vibration value, left 3.9 m/s2 6)
    Vibration value, right 3.9 m/s2 6)
    CO² ­ 747 g/kWh

    1)Complete, without tools2)K-factor according to DIR 2006/42/EC = 2.5 dB (A)3)Without cutting wheel4)Power factor according to DIR2006/42/EC=2.5(dB(A))5)(K) factor according to Dir. 2006/42/EC = 2m/s²6)K-factor according to DIR 2006/42/EC = 2m / s ²
