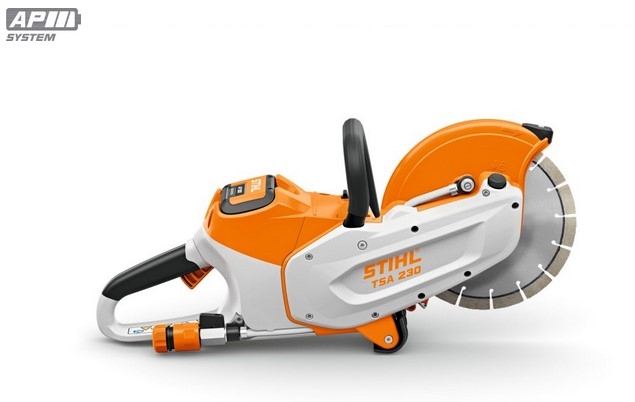

STIHL TSA 230 Cordless Cut-off Machine - AP System
With 9" cutting wheel
Tool only
TSA 230
Powerful cordless cut-off machine with 230 mm cutting wheel
Individual tool without battery and without charger
For use in building construction and civil engineering, as well as in the home and garden
Energy-efficient, low-maintenance engine
Straightforward cutting wheel replacement
For 230 mm cutting wheels
This 9” cordless cut off machine is part of STIHL's AP System. Cutting neatly and swiftly up to 70mm deep, the TSA 230 is ideal for cutting roofing tiles, bricks, metal and paving blocks. It is particularly light at only 3.9 kg (without battery). Emission-free cordless technology benefits both the operator and environment whilst allowing the tool to be operated indoors and outdoors. The water connection and vacuum accessories ensure effective dust control when cutting. Supplied with an abrasive wheel for cutting steel
Features
Low-maintenance motor technology
The EC motor with maintenance-free belt drive and enclosed control unit is very durable and low maintenance
Ergonomic handle
FOR PRECISE GUIDANCE. With the ergonomic handle, you can keep a firm grip on your tool and carry out cuts precisely, even when dealing with very hard stone. The curved handle offers you an optimised grip position and the highest level of comfort when working.
Magnesium guard
LIGHTWEIGHT AND STABLE. The cutting wheel guard ensures that you are not hit by flying cut material or cooling water from the cutting wheel. The cast magnesium guard is very lightweight and robust.
Spindle lock mechanism
Cutting wheels can be changed quickly and easily.
EC Motor
LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC motor enables you to work in an energy efficient manner. This engine also has a long service life.
Water connection
FOR DUST BINDING AND COOLING. When working with your tool, a permanent water supply is provided for flushing the cutting wheel. It is used to bind dust and cool the cut. With the water connection directly on the tool, this rinsing is easy and permanently assured..
Technical details
| Power |
1.15 kW |
| Rated voltage |
36 V |
| Weight |
3.9 kg |
| Sound power level |
114 dB(A) |
| Vibration level, left |
3.5 m/s² |
| Vibration level, right |
3.5 m/s² |
| Total device length |
55 cm |
| Cutting disc diameter |
230 mm |
| Max. cutting depth |
70 mm |
| Recommended battery |
AP 300 |
| Battery working time AP 300 S (Power level 1) |
up to 22 min 1) |
| Battery working time AP 500 S (Power level 1) |
0-26 min |
| Battery system |
AP |
| IPX Rating |
N/A |
