Powerful cordless KombiMotor for professional applications
Individual tool without battery and without charger
Durable air filter with metal mesh for optimum engine cooling
Can be combined with all KombiTools
Prepared for use with a Smart Connector 2 A
Can be combined with all KombiTools (except FSB-KM)

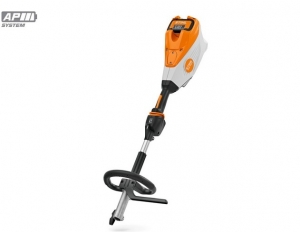

The STIHL KMA 135 R is a powerful battery-powered KombiMotor designed for professionals taking on the toughest gardening, landscaping and maintenance tasks throughout the working day. The KMA 135 R is battery powered meaning it has low noise emission – making it ideal for work in noise-sensitive areas such as schools, hospitals and quiet neighbourhoods. It’s powered by a 36-volt lithium-ion battery and is quiet, efficient and powerful enough to tackle a variety of tasks - whether it’s pruning, trimming, mowing, clearing or cutting! Compatible with all KombiTools (except FSB-KM), attaching and changing tools is made simple too – all you need to do is insert your desired tool into the shaft and tighten to secure it in place.
Fitted with a loop handle which makes tackling tasks on slopes, around trees or on uneven terrains even easier. The KMA 135 R has a powerful brushless EC motor and speed-adjustment on the control handle, which can be set at 3 different speed settings depending on the task you’re doing. It’s also fitted with an LED display as well as infinitely variable speed control. The air filter on the housing ensures that the engine is kept cool during work, improving the service life of the brushcutter. It’s easy to remove and clean too.
You can use any of the AP batteries with the KMA 135 R, however, working times will vary depending on which attachment you use with it. The AP 500 S battery will give you the longest working times but is also the heaviest of the AP batteries, so you may decide to choose a smaller capacity battery if you are going to be using the tool for a longer period of time, such as when hedge trimming.
The KMA 135 R is supplied with a basic harness as standard. KombiTools sold separately.
KombiTools
| |
AP 200 S |
AP 300 S |
AP 500 S |
AR 2000 L |
AR 3000 L |
| FS-KM brushcutter |
14 - 28 mins1 |
22 - 45 mins1 |
26 - 54 mins1 |
80 - 160 mins1 |
115 - 200 mins1 |
| MB-KM brushcutter |
30 - 50 mins1 |
50 - 100 mins1 |
60 - 120 mins1 |
160 - 310 mins1 |
240 - 430 mins1 |
HL-KM 0° long-reach hedge trimmer
|
81 - 123 mins1 |
152 - 229 mins1 |
182 - 275 mins1 |
540 - 810 mins1 |
790 - 1150 mins1 |
HL-KM 145° long-reach hedge trimmer
|
81 - 123 mins1 |
152 - 229 mins1 |
182 - 275 mins1 |
540 - 810 mins1 |
790 - 1150 mins1 |
FH-KM 145° scrub cutter
|
81 - 123 mins1 |
152 - 229 mins1 |
182 - 275 mins1 |
540 - 810 mins1 |
790 - 1150 mins1 |
| BG-KM blower |
10 - 26 mins1 |
19 - 48 mins1 |
23 - 58 mins1 |
60 - 170 mins1 |
90 - 245 mins1 |
| HT-KM pole pruner |
19 - 42 mins1 |
36 - 78 mins1 |
43 - 97 mins1 |
120 - 275 mins1 |
180 - 320 mins1 |
| KB-KM bristle brush |
25 - 31 mins1 |
46 - 57 mins1 |
55 - 68 mins1 |
160 - 200 mins1 |
230 - 300 mins1 |
| BF-KM pick tine |
25 - 31 mins1 |
46 - 57 mins1 |
55 - 68 mins1 |
160 - 200 mins1 |
230 - 300 mins1 |
| FCS-KM straight shaft edge trimmer |
12 - 23 mins1 |
22 - 41 mins1 |
26 - 49 mins1 |
75 - 145 mins1 |
110 - 210 mins1 |
| FCB-KM edge trimmer |
12 - 23 mins1 |
22 - 41 mins1 |
26 - 49 mins1 |
75 - 145 mins1 |
110 - 210 mins1 |
| RG-KM rotary cutting head |
57 mins |
85 mins |
102 mins |
300 mins |
450 mins |
1) Level 1 - Level 3/4
EC motor
LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC motor enables you to work in an energy efficient manner. This engine also has a long service life.
Battery compartment in the engine casing
DIRECT POWER SUPPLY TO THE tool. With this tool, you can insert the required battery from the STIHL AP System directly into the engine housing. This increases your mobility and flexibility when working.
Metal mesh air filter
OPTIMAL ENGINE COOLING. The air filter with fine metal mesh cleans the air and in this way ensures optimum engine cooling. As it is easy to clean, it also offers a long service life.
Single-handed multi-function handle with SpeedCon
EASY ADJUSTMENT OF tool PERFORMANCE. Quickly and conveniently adjust the speed of your tool to the respective work situation. Doing so reduces energy consumption at low speeds, and in this way extends the battery runtime. The practical control handle with speed control allows you to make the relevant adjustment without having to change your grip or pause work.
Power boost
MAXIMUM PERFORMANCE INCREASE. Thanks to intelligent electronics, STIHL power tools and batteries communicate with each other. If the device and battery are equipped with the POWER BOOST function, the battery always provides the maximum possible power for the respective application. In order to ensure optimum battery life, the device temporarily adjusts the power if it is used too intensively.
Constant power
When using other brands of battery tools, the performance can sometimes decrease during work as the battery discharges. This isn't the case with STIHL battery-powered tools. Thanks to the intelligent electronics, your tool will work with consistently high power across the entire battery charge, until there is no energy left in the battery.
Energy recovery
When the throttle is released, energy is recovered and fed back into the battery - which extends the battery life during use
Loop handle with bar
FOR SAFE WORK IN SMALL SPACES. The loop handle ensures good manoeuvrability of your tool, even in confined spaces. The bar protects you by ensuring your feet and legs cannot come too close to blades or mowing heads during work.
Fleet management with the SMART Connector
OPTIMISED tool USE. Thanks to STIHL connected, you always have an overview of your tool fleet and can automatically receive tool data such as age, operating hours, and maintenance status. This allows you to determine the ideal fleet size based on digital information, as it makes clear how the tool fleet is being used. The Smart Connector collects the required data and transfers it to a tool. All recorded tool data is available for viewing and evaluation in the STIHL connected App and the STIHL connected Portal.
IPX4 certified
SPLASHWATER PROTECTION. The AP 200 S is IPX4 certified thanks to the encapsulated electronics and sealing of each individual cell. It means that the battery is protected against splashwater from all sides and can be used in rainy conditions.
Technical details
| Rated voltage |
36 V |
| Battery system |
AP |
| Device weight without battery |
3.4 kg 1) |
| Length to coupling sleeve |
96 cm |
