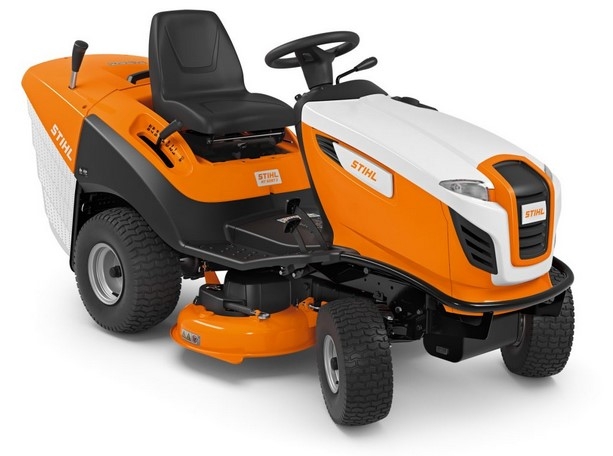

STIHL RT 5097 Z Petrol Ride-on Lawn Mower

High performance with twin cylinder engine
RT 5097 Z

  • Powerful ride-on mower with 2-cylinder engine
  • For domestic users and landscape gardeners
  • Single-pedal drive for swift manoeuvring
  • Straightforward cut-height adjustment and blade clutch
  • Adjustable operator’s seat for a comfortable ride
  • 250-litre plastic grass collection box with sabre-type handle
  • The STIHL RT 5097 Z ride-on mower shows that comfort and performance are not just reserved for deluxe models. Enjoy the sprung loaded seat which is adjustable to all heights and master the controls which are close at hand: the forward/reverse drive lever at the steering wheel, the central cutting height adjustment, the blade clutch and the lever for effortless emptying of the grass catcher box. The RT 5097 Z features a very powerful twin cylinder STIHL EVC 700 engine for top level performance. In addition the single-pedal operation and direct steering provide a previously unattained level of comfort during driving, manoeuvring and mowing. The Grass Guide System on both sides of the mowing deck catches grass blades at the edge of the deck and guides them towards the cutting blades. The 2 blade system with angled blades provides a neat and clean cutting pattern over a width of 95 cm. The RT 5097 Z comes with a 5 year extended warranty (subject to registration and annual servicing).

  • Features

  • Electromagnetic blade clutch

  • The mowing deck can be easily engaged and disengaged by a switch situated on the control panel.

  • Turf tyres

  • The large turf tyres of the STIHL ride-on mower help to protect the lawn. Thanks to their rounded tyre design, they reduce the formation of driving tracks.

  • Central cut-height adjustment

  • The lever to adjust the deck cutting height is located directly next to the driver's seat. It enables individual adjustment of the cutting height in up to eight steps.

  • Robust frame

  • The robust frame construction gives the mower a high level of stability and driving comfort. The STIHL ride-on mowers compact design  is great for using attachments such as the AGW 098 garden roller or PICK 300 tilting trailer.

  • Spring-loaded and adjustable seat

  • The most comfortable seat position can be set without the use of tools. This allows individual adjustment of the driver's seat to almost any body size.

  • Low step

  • The low step on the STIHL ride-on mowers provides ample legroom and allows for comfortable access to the seat.

  • Catching management system

  • The catching system guides the grass blades across the entire working width of the mowing deck. It helps to guide the grass towards the mowing blades for a more efficient cut.

  • Grass collection box with sabre handle

  • The polymer grass catcher box can be emptied effortlessly from the driver’s seat simply using the curved shaped handle. The "dumper" design ensures optimum filling and residual-free emptying of the grass catcher box. Cleaning the catcher box is also easy.

  • Single pedal drive

  • With the STIHL single pedal drive, the direction of travel can be conveniently switched between forward and reverse gear using a hand lever for quick manoeuvring. The pressure-sensitive pedal allows for precise control of the speed between top speed and standstill. The separate brake pedal ensures immediate stopping.

    •  Technical details




    Cutting width 95 cm
    Cutting height 30 - 100 mm
    Grass catcher box volume 250 l
    Gear type Hydrostatic
    Tank capacity 9 l
    Motor type EVC 7000.0
    Displacement 635 cm³
    Rated power 12.2 kW / 16.6 hp
    Rated speed 2700 rpm
    Device weight 237 kg
    Device length with grass catcher box 242 cm
    Device width with mowing unit 101 cm
    Device height to seat 116 cm
    Turning radius 1 m
    Sound power level, guaranteed LWA 100 dB(A)
    Measured sound pressure level LpA 86 dB(A)
    Uncertainty factor, sound pressure level KpA 2 dB(A)
    Vibration level at seat 0.98 m/s²
    Uncertainty, vibration on seat 0.49 m/s²
    Vibration level at steering wheel 2.2 m/s²
    Uncertainty, vibration on steering wheel 1.1 m/s²
    CO2 850 g/kWh
