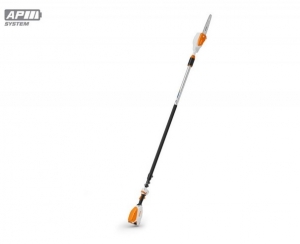

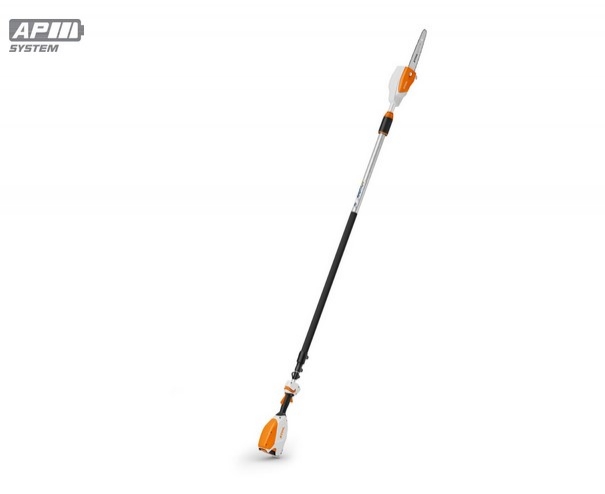

STIHL HTA 86 Cordless Pole Pruner - AP System

Powerful telescopic with a 30 cm / 12" bar length
Tool only
HTA 86

  • Lightweight cordless pole pruner for tree and shrub maintenance
  • Individual tool without battery and without charger
  • Pruning and tree crown maintenance in the professional and private sector
  • Easy length adjustment by 120 cm thanks to telescopic shaft
  • Safe removal of loose branches up to a height of 5 m with robust branch hooks
  • Fast refilling of the oil tank with tool-free tank cap
  • Powerful cordless pole pruner. Quiet and low-vibration. For professional use in tree maintenance, orchards and local authorities. For pruning trees, removing dead wood and breakage from storms, and for cutting back fruit trees. ¼" PM3 saw chain, lightweight and compact
    power head with sturdy branch hook for easy removal of loose cuttings from the tree. Rigid shaft to help with guidance and a clean and
    precise cut. Rapid length adjustment with quick release mechanism. Total length 270 – 390 cm.

    Exterior design of STIHL guide bars are subject to change. Technical specifications remain the same.

    Features

    Branch hook

    REMOVAL OF LOOSE CUTTINGS. Thanks to the sturdy branch hook, you can remove loose and cut branches when working at height.

    EC motor

    LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC motor enables you to work in an energy efficient manner. This engine also has a long service life.

    Intuitive operation

    EASY STARTING. To start the tool, all you need to do is release the lock using the locking switch. The tool can then be started using the trigger. The additional ERGO lever enables continuous work without having to restart. The self-resetting locking switch prevents accidental activation of the tool. Operation is suitable for both left-handed and right-handed users.

    Excellent tool balance

    REDUCES WORKING FATIGUE. Thanks to the battery’s optimal centre of gravity, this tool has a low tilting torque which supports fatigue-free working.

    Telescopic shaft with twist-secured clamping sleeve

    EASY-TO-ADJUST SHAFT LENGTH. The square telescopic shaft is equipped with a twist-secured clamping sleeve. This enables quick and tool-free adjustment of the shaft length (may vary in overall length for different tools). This means that you can quickly and efficiently adapt the tool being used to the respective work situation.

    Technical details

    Bar length 30 cm
    Bar length 12 "
    Power 0.85 kW
    Rated voltage 36 V
    Weight 4.6 kg 1)
    Sound pressure level 77 dB(A) 2)
    Sound power level 93 dB(A) 2)
    Vibration level, left 1 m/s² 3)
    Vibration level, right 1 m/s² 3)
    Saw chain pitch 1/4'' P
    Total length (min.) 270 cm 4)
    Total length (max.) 390 cm 5)
    Recommended battery AP 200
    Battery working time AP 300 S (Power level 1) up to 68 min 6)
    Battery working time AP 500 S (Power level 1) 0-82 min
    Battery working time AR 2000 L (Power level 1) up to 210 min 7)
    Battery working time AR 3000 L (Power level 1) up to 300 min 7)
    Battery system AP
    IPX Rating IPX4

    1)With bar and chain, without cable and chain oil2)K-factor according to DIR 2006/42/EC = 2.5 dB (A)3)K-factor according to DIR 2006/42/EC = 2m / s ²4)Minimum with tool5)Maximum with tool6)Working times are approximate and may vary depending on application7)Working time may vary depending on the application
