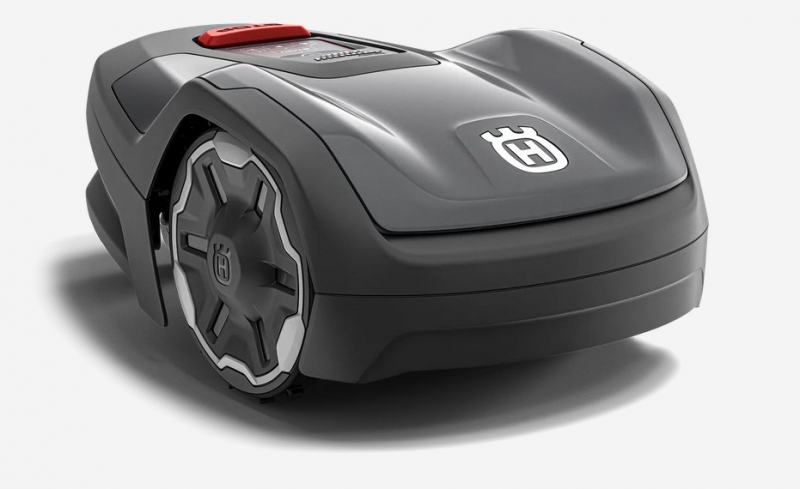

This compact robotic mower offers a lawn cut to perfection 24/7. Optimised for lawns up to 400m² with systematic passage mowing for precisely cut narrow passages, slope handling of 25% and carefree operation thanks to reliable mowing, frost guard and weather timer. Equipped with FOTA (automatic firmware updates) and easily cleaned with a hose means effortless ownership. Complete control from your smartphone with the Automower® Connect app and smart wall storage with the included Aspire™ hooks.



Compact Performance

The compact size and low weight of every Husqvarna Aspire™ product improve maneuverability and boasts an impressive amount of Husqvarna innovative technologies – all to increase the machine’s capacity and efficiency while consistently delivering great results in your suburban garden.

Compact Storage

Naturally compact and light, the footprint of Husqvarna Aspire™ tools becomes even less thanks to adjustable, foldable, collapsible or detachable parts – for easy storage and transport in tight spaces like small sheds or cars. Using the tailor-made hook included in every package, you can choose to store them directly on the wall or hang on our wall-mounted storage rail, part of the Husqvarna Aspire™ Storage system.

Automower® Connect app

Enjoy the convenience of complete command from your smartphone with the Husqvarna Automower® Connect app. From edge to edge you can manage and monitor your Husqvarna robotic mower – freeing you from the task of mowing your lawn with the reliability to always achieve a premium cut. Make your lawn care as carefree as possible with Automower® Connect. Cellular, Wi-Fi and Bluetooth connectivity available, dependent on model. *Bluetooth® connectivity offers up to 30 meters range. Wi-Fi connectivity gives coverage from anywhere in the world whilst the mower is connected to Wi-Fi. Cellular communication gives coverage from anywhere in the world and includes a 10 years mobile data contract*. *The included Automower® Connect 10 years contract only applies if a third party provides sufficient mobile coverage in the area

Smart Home integration

All Husqvarna Automower® models with cellular or Wi-Fi connectivity are compatible with Amazon Alexa and Google Home. This means that you can execute the most common voice commands such as start, stop, park and get status updates from your mower by simply asking your voice assistant, use it in IFTTT routines and more. With Automower® Connect you can also integrate your robotic mower with your Gardena Smart System and let mowing and watering work together.

Weather timer

Adjusts the working time to the lawn’s growth rate, meaning that Husqvarna Automower® will maximise its mowing time during periods of strong grass growth. In sunny or dry weather, or late in the season, the mower will spend less time mowing, which decreases wear on lawn and mower.

Systematic Passage Mowing

To deliver excellent cutting results everywhere, the robotic mower can be set to automatically switch mowing pattern from random mode to systematic mode in narrow passages.

Smart Connections with IFTTT

Integrate Automower® even more into your smart home by using it in IFTTT applets. Connect to one of our smart connections in the Automower® Connect app, or even create your own routine with IFTTT. Perhaps you want your mower to park when your kids come home from school or when the weather forecast shows heavy rain? Or perfectly synchronise it with the weather? IFTTT (“If This, Then That”) is free and easy to use

FOTA - Firmware-Over-The-Air

Possibility to make software updates automatically, over the air, via the Automower® Connect app to enable new features and updates.

Automatic passage handling - PATENTED

Husqvarna Automower® automatically senses narrow passages and finds its way even through the smallest passages. It will vary its route through the passage to avoid unpleasant tracks.

Frost guard

The robotic mower automatically interrupts the mowing schedule in frosty conditions, helping to protect the lawn.

Easy cleaning

You can wash the exterior and underneath of the robotic mower with a garden hose. By using the attached maintenance tool, the cover can easily be removed, for easy cleaning and reachability everywhere.

Low carbon emissions

By choosing this product, you can feel confident that it produces lower carbon emissions during active use compared to a traditional petrol product. This battery-driven product does not emit any CO₂ during use while still providing the power and quality that you expect from a Husqvarna product. However, it’s important to note that CO₂ emissions are generated during other stages of the product´s lifecycle, such as production, charging and end-of-life disposal.

























Specification



Capacity	Husqvarna Automower® Aspire™ R4 Art no: 970 56 85‑03
Working area capacity (±20)	400 m²
Boundary type	Wire
Maximum slope performance at boundary	10 %
Maximum slope performance inside installation	25 %
Max active time	9 h
Search system	Singlesearch
Follow guide	1
Charging system	Automatic
Overall dimensions
Weight	5.9 kg
Product size length	55 cm
Product size width	33 cm
Product size height	22 cm
Product Data
Colour	Grey
Sound level perceived	59 dB(A)
Protection index (IP Code)	IPX5
Battery type	Lithium Ion
Battery capacity	2 Ah
Charging current	1 A
Typical mow time on one charge	70 min
Typical charging time	75 min
Mean energy consumption per month at maximum use	3 kWh
Mean energy consumption at maximum use	400 m²
Cutting System
Cutting system	3 pivoting razor blades
Cutting height max	45 mm
Cutting height min	20 mm
Cutting width	16 cm
Cutting height adjustment	Manual
Skid plate	No
Dual cutting direction	Yes
Control
User Interface	Keypad/App
Display	None
Connectivity	Bluetooth®, Wi-Fi
App controlled	Automower® Connect
Smart Home integration	Yes
Firmware Update	FOTA
Safety
GPS Theft tracking	No
GeoFence	No
PIN code	Yes
Alarm	No
Lift sensor	Yes
Tilt sensor	Yes
Object detection	No
