HUSQVARNA 525RX MkII Brushcutter

525RX Mk II

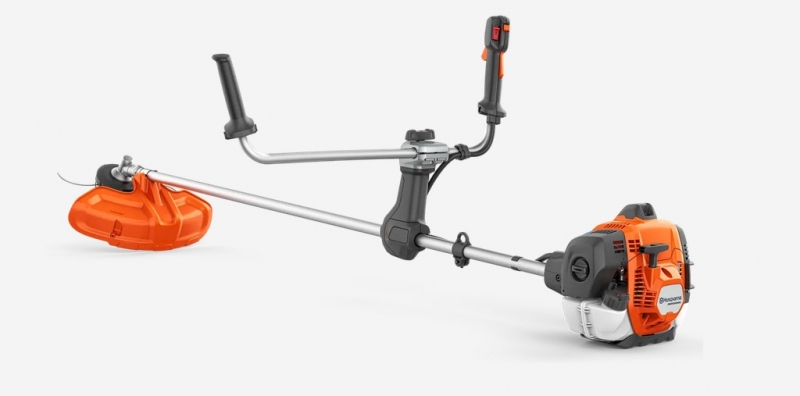

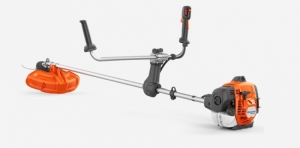

Husqvarna 525RX Mark II is a powerful, lightweight 25cc petrol brushcutter for professional use. Equipped with a large fuel tank for extended runtime. This robust, well-balanced brushcutter is designed for frequent trimming work. The large cutting width increases productivity. Connects easily to Husqvarna FleetServices with the connectivity device available as accessory. Comes with harness Balance 35, trimmer head and 4-tooth grass blade.

Features

Outstanding cutting capacity

The Husqvarna X-Torq® engine combined with a market leading cutting diameter offers outstanding cutting capacity.

Large fuel tank

The 0,65l fuel tank enables longer runtime. Improved productivity as fewer time-consuming stops for refueling are necessary.

Intuitive controls

The choke and purge are easy to reach and understand.

Connectivity ready

Dedicated space for Husqvarna connectivity device, which enables easy connection to digital services such as Husqvarna FleetServices.

Integrated service port

An integrated service port offers improved troubleshooting through easy connection to Husqvarna Service Hub.

For full-time professional use

High-quality materials and proven components, tested according to highest standards offers high durability and decreased service costs.

High handle bar

High handle bar increases freedom of movement when working on slopes.

LowVib™

Effective anti-vibration dampeners absorb vibration, sparing the user’s arms and hands.

Adjustable handlebar

Adjustable and ergonomically designed handlebar for best comfort.

Offset handle bar

Angled handlebar and comfort handles provides excellent grip and working position.

X-Torq® engine

The X-Torq® engine design increases torque over a wider rpm range providing maximum cutting power.

Efficient air filter

The efficient air filter provide less cost for service and less engine wear.

Stand alone starter

The stand alone starter makes it easy to change starter cord if needed.

Auto return stop switch

Stop switch automatically resets to the ON position for trouble-free starting.

Quick Start with Air Purge

Air purge removes air from carburetor and fuel system for easy starting

Optimal Cutting Performance

Trimmer head designed for high torque to deliver optimal cutting performance when parallel to the ground

High Line Capacity

Tap 'n' Go trimmer head is easy to use and refill

Combi-guard

The cutting attachment combi-guard can be used with either a grass blade or a trimmer head.

Specifications

Engine	All ex US50, T35 + Grass 255-4 (1") Art no: 970 44 66‑01
Cylinder displacement	25.4 cm³
Power output	1 kW
Fuel tank volume	0.65 l
Fuel consumption	600 g/kWh
Maximum power speed	8,500 rpm
Idling speed	3,000 rpm
Maximum rpm output shaft	8,200 rpm
Electrode gap	0.55 mm
Clutch engagement speed (±120)	4,000 rpm
Torque, max.	1.2 Nm
Torque, max. at rpm	6,000 rpm
Spark plug	Husqvarna HQT-2
Equipment
Grass blade	Grass 255-4
Harness	Balance 35
Trimmer head	T35 M10
Capacity
Cutting width	45 cm
Transmission
Gear ratio	13
Drive gear angle	30 °
Dimensions
Tube diameter	24 mm
Weight (excl. cutting equipment)	5.5 kg
Tube length	1,483 mm
Lubricant
Lubricant type (Engine)	Husqvarna 2 stroke or equiv. at 50:1
Sound and Noise
Sound pressure level at operators ear	94 dB(A)
Emission
Exhaust emissions (CO2 EU V)	1,141 g/kWh
Exhaust emissions (HC average)	29.55 g/kWh
Exhaust emissions (CO average)	337.1 g/kWh
Exhaust emissions (NOx average)	0.31 g/kWh
Vibration
Equivalent vibration level (ahv, eq) left handle	2.8 m/s²
Equivalent vibration level (ahv, eq) right handle	2.7 m/s²
