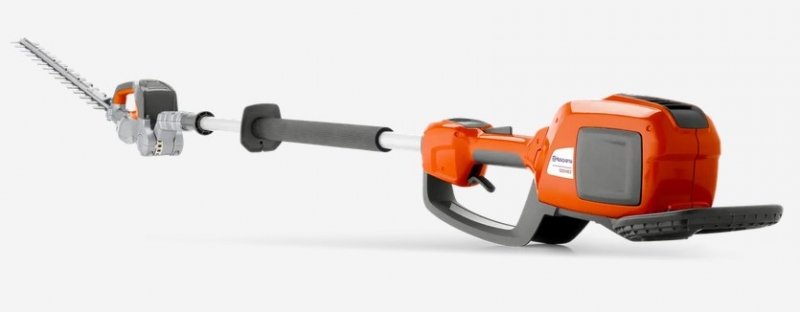

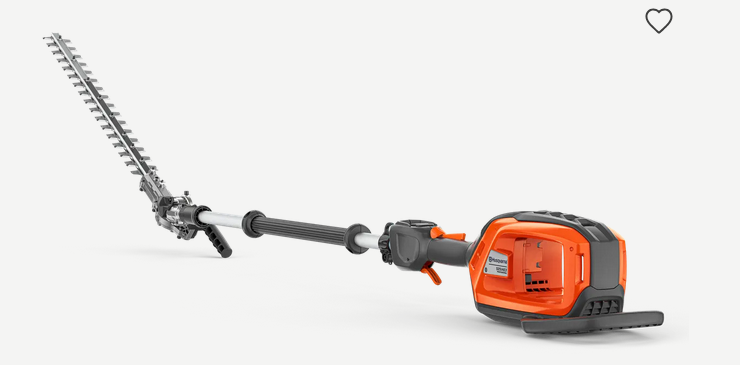

HUSQVARNA 520i HE3 Battery Hedge Trimmer

520i HE3

520iHE3

The Husqvarna 520iHE3 battery pole hedge trimmer combines petrol performance with zero emissions and extremely quiet operation. With up to 3.5m reach, high cutting speed and Husqvarna durability, it gives pro-level productivity and results – but is quiet and clean enough for use even in residential areas, hotels, hospitals and other noise-sensitive environments. Remote control angle adjustment and comfortable handles make the 520iHE3 ideal for any operation. Compatible with all Husqvarna BLi-batteries and chargers.

Features

Power-Conserving savE™ Mode

Choose between normal or savE™ mode, depending on conditions, for maximum power or maximum runtime. Either way, you’ll always get a perfect result.

Weatherproof (IPX4)

This battery-powered Husqvarna machine fulfils the IPX4 classification for rain resistance. This makes it a long-lasting and reliable tool that can be used all year round in all weather conditions.

Intuitive key pad

The key pad is very easy to operate.

Battery through body design (Pat.pend.)

Smart battery pack position, placed horizontally through the body of the machine. Reduces the risk of having dirt, chips, dust and water accumulate in the battery compartment, causing connector issues. Also, it means the weight of the battery can be placed in or near the desired centre of gravity and in the rotational axis of the product, resulting in increased maneuverability. The through body design also offers a high degree of flexibility since it allows battery packs of different sizes to be used

Efficient brushless motor

Our in-house developed, advanced brushless motor is 25 % more efficient than a standard brush motor. This means that the motor provides a high and consistent torque.

Ergonomic handle

Ergonomically shaped handle for greater comfort and easy access to the controls.

Metal housing

The robust but very slimmed metal housing is one of many durable elements on the product. It is designed to protect motor and gears.

Cutting speed

The 4000 cuts per minute ensure great cutting results.

Convenient control

Convenient one hand grip to adjust the angle of the cutting deck.

Angle adjustment

The angle adjustment enable ergonomic working positions when cutting both high and low hedges.

Long reach

Long reach for increased capacity. The cutter bar can be set at various angles to the shaft, so you can cut the top while standing on the ground.

Transport mode

Cutter bar easy foldable into transport mode for a more compact size. Facilitates transport and storage.

Rear impact guard

The rear-impact guard protects the integrated battery from wear and damage.

Lightweight and well balanced

Slimmed and ergonomic design makes it lightweight and well balanced – allowing you to work comfortably in all situations.

Quiet operation

The noise level from our battery machines are up to 13 dB(A) lower than a petrol machine – which is a huge difference. A reduction of 3 dB(A) is usually perceived as a halving of the noise level. This makes work a lot more pleasant for you – and also allows you to work in the most public of settings.

Low maintenance

No refilling of fuel, less parts to serve and an electronically controlled drive system means less downtime and low operation costs.

Interchangeable Battery System

Able to be used in all Husqvarna battery tools, our lithium-ion batteries are durable, easy to swap and recharge quickly

Gear up for nonstop operation

Our battery accessories allow you to carry on and get the job done as quickly and efficiently as possible.

Specification

Capacity	HEDGE TRIMMER 520iHE3 Extended. No battery/charger Art no: 967 91 58‑13
Cutting speed	4,000 cut/min
Battery
Battery type	Lithium Ion
Battery voltage	36 V
Engine
Motor type	BLDC (brushless)
Equipment
Knife length	55 cm
Teeth opening	32 mm
Battery	Not included
Battery charger	Not included
Dimensions
Product size length	227 cm
Length, transportation mode - metric	150 cm
Weight (excl. battery)	4.2 kg
Sound and Noise
Sound power level, guaranteed (LWA)	95 dB(A)
Sound pressure level at operators ear	84 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle	1.7 m/s²
Equivalent vibration level (ahv, eq) front handle	2.6 m/s²
