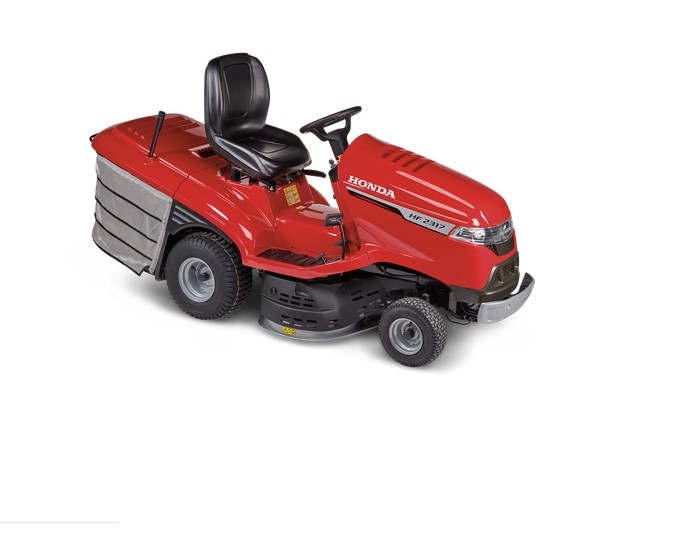

HONDA HF 2317 HME Lawn Tractor

HF 2317 HME

A durable lawn tractor that gives an accurate cut, featuring 92cm blades, a Hydrostatic drive and a 280-litre grass bag

Features

Optiflow™

A fan powered system under the cutter deck that improves air flow between the cutter deck and the high air flow grass bag. It significantly improves collecting performance of the lawnmower.

Specification

  • Function
    Blade brake clutch Electromagnetic
    Optiflow Yes
    Grass bag dumping Manual
    Positions and cutting 7
    Noise value - sound power level (dB(A)) 100
    Mulching Optional
    Rear deflector Optional
    Tow hitch Optional
  • Dimensions
    Length (mm) 2440
    Width (mm) 970
    Height (mm) 1230
    Dry weight (kg) 218
  • Cutting
    Cutter deck size (cm) 92
    Number of blades 2
    Synchro or Asynchro Asynchronous
    height adjustment (mm) 30 - 80
    Grass bag capacity (Litres) 280
  • Engine
    Engine OHC V-twin 4-stroke
    Engine displacement (cc) 530
    Engine model GCV 530
    Engine Rated Power (kW/rpm) 9.7/2800
    Fuel tank capacity (Litres) 5.4
    Engine oil capacity (Litres) 1.3
    Transmission type Variable: Hydrostatic
    Driving speed (km/h) Progressive 0 to 8.2
  • Tyres
    Front tyres (diameter x width - rim) (inches) 13 x 5.00 - 6
    Rear tyres (diameter x width - rim) (inches) 18 x 8.50 - 8
    Turning radius (m) 1.8
