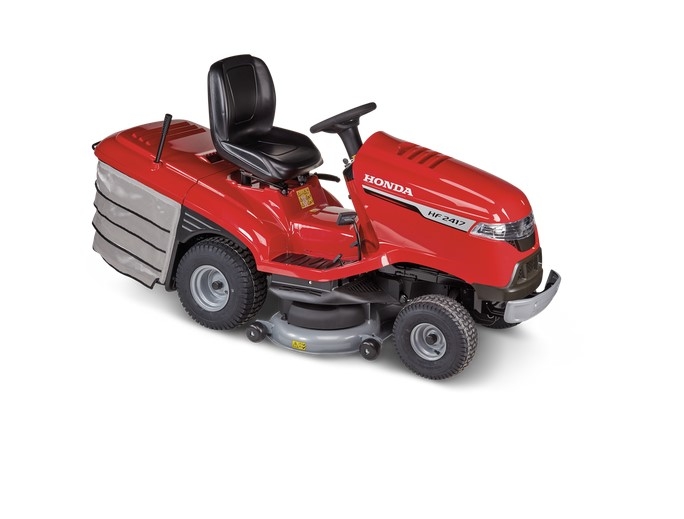

HONDA HF 2417 HBE Lawn tractor

HF 2417 HBE

With a state-of-the-art LCD display, an anti-scalp cutter deck and a precise 101cm cut, this is the perfect all-round lawn tractor.

Features

Optiflow™

A fan powered system under the cutter deck that improves air flow between the cutter deck and the high air flow grass bag. It significantly improves collecting performance of the lawnmower.

Synchronous blade cut

Both blades have an overlapping cutting area to create accurate mowing and avoid any uncut areas when turning.

Specification

  • Function
    Blade brake clutch Electromagnetic
    Optiflow Yes
    Grass bag dumping Manual
    Positions and cutting 7
    Noise value - sound power level (dB(A)) 100
    Mulching Optional
    Rear deflector Optional
    Tow hitch Optional
  • Dimensions
    Length (mm) 2440
    Width (mm) 1060
    Height (mm) 1230
    Dry weight (kg) 236
  • Cutting
    Cutter deck size (cm) 102
    Number of blades 2
    Synchro or Asynchro Synchronous
    height adjustment (mm) 29-90
    Grass bag capacity (Litres) 300
  • Engine
    Engine OHC V-twin 4-stroke
    Engine displacement (cc) 530
    Engine model GCV 530
    Engine Rated Power (kW/rpm) 9.7/2800
    Fuel tank capacity (Litres) 5.4
    Engine oil capacity (Litres) 1.3
    Transmission type Variable: Hydrostatic
    Driving speed (km/h) Progressive 0 to 8.2
  • Tyres
    Front tyres (diameter x width - rim) (inches) 15 x 6.00 - 6
    Rear tyres (diameter x width - rim) (inches) 18 x 8.50 - 8
    Turning radius (m) 1.8
