Power/fuel type

Gasoline

Cutting width, min

103 cm

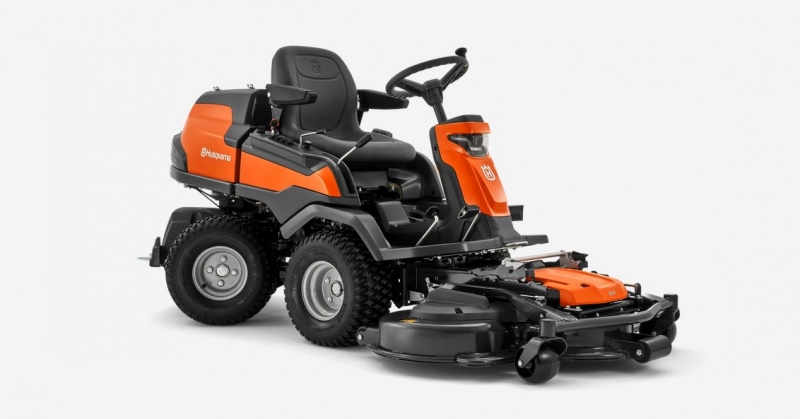

A compact, high-performance All-Wheel-Drive rider with a powerful Kawasaki V-twin Engine and power steering that easily manages large, tight and hilly areas. The unique XChange attachment frame allows you to change attachments quickly and without the use of tools. Thanks to Bluetooth connectivity, you can easily monitor your rider with the Husqvarna Connect app. Equipped with dual LED lights, an adjustable steering wheel and a convenient



Features

All-Wheel-Drive (AWD)

All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.

Kawasaki FS-series

Kawasaki V-twin, overhead-valve engine with full pressure lubrication and spin-on oil filter. Combines exceptional power and torque with fuel efficiency and reduced emissions.

XChange

Unique quick coupling allows attachments to be changed quickly and easily without the need for any tools. Get ready for a new task in just a minute.

Power-assisted steering

Power-assisted steering makes driving less strenuous and more enjoyable.

HMI Display

The intuitive display communicates with the driver through visual symbols and warning sounds, assists in handling and gives real time data and warnings.

Dual LED lights for improved visibility, both near and remote.

Dual LED lights for enlarged lighted area and safer operation in darker conditions. Improved visibility, both near and remote.

Combi cutting deck with BioClip® (mulching)

BioClip® (mulching) provides perhaps the best cutting result on the market on frequently cut areas. The grass is cut into fine pieces that quickly turn into fertiliser.

Versatile usage

A wide range of cutting decks and accessories makes our Riders exceptionally versatile, all year round.

Service position

Service position on the cutting deck facilitates cleaning and service.

Pedal-operated hydrostatic transmission

Easy speed and direction control with pedal-operated hydrostatic transmission. Separate pedals for forward and reverse.

Pivoting support wheels

The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns. The wheels also prevent damages to the lawn surface.

Pivoting rear axle

The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.

Adjustable sliding seat

Unique seat platform automatically changes height as seat is moved forward or rearward to optimize operator position.

Easy-access controls

All controls, including the cutting height adjustment, are ergonomically located and easy to reach from the operator's seat.

Easy adjustment of the steering wheel.

Easy and tooless height adjustment of the steering wheel for greater ergonomics and comfort.

Steering wheel with knob

Steering wheel with comfortable and defined grip areas with soft touch surface and knob for easier operation. Quick height adjustment without the need of tools.

Cargo holder

Practical carrier for extra equipment. Easy access to 12V outlet to charge handheld battery products. Rails and fixing hooks are installed on the engine hood as standard and can be completed with a convenient luggage rack kit for even greatest utility.

Oil cooler

A heat exchanger for cooling the hydraulic system. The coolingsystem is adequate to keep oil temperatures within safe limits.

Double12V socket outlet

Double 12V socket outlets makes it possible to plug in extra electric equipment, ot to charge batteries, cell phones etc.

Floating cutting deck

The floating cutting deck follows the contours of the ground, which reduces the risk of scalping the lawn.

Premium seat

Comfortable Premium seat with high back and armrests. The seat is self-draining and can be tipped to protect it from rain. Universal mounting. (Armrests as option on some models.)

Equipment lift

Hydraulic equipment lift improves performance and allows greater precision and control. The blades are engaged automatically when the cutting deck is lowered.

Easy-access cutting height lever

The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.

Comfortable driver's position

With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable 'sit-in' feeling for the user.

Easy-access controls

Controls are easy accessible and designed for optimum user comfort.

Four large wheels

16-inch wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.

Front-mounted cutting deck

Front-mounted cutting deck for excellent accessability into corners and under bushes, park benches etc.

Ready for Combi deck

Prepared for the high-performing and unique Combi deck. Designed to deliver a cutting result in top-class, offering two cutting methods in one deck; mulching or rear discharge (mulch plug removed). Stamped from a single piece of steel plate in a flow-optimized design to deliver best in class mulch result.

Rear-mounted engine

Rear-mounted engine gives the operator optimized overview and less noise and emissions in the operator’s area.

Husqvarna Connect

With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play

Specifications

Engine	R 420TsX AWD Art no: 967 64 84‑01
Power/fuel type	Gasoline
Net power at preset rpm Energy	14 kW
Motor/engine manufacturer	Kawasaki
Engine name	FS Series V-Twin
Cylinder displacement	726 cm³
Cylinders	2
Engine cooling	Fan/Air
Engine lubrication type	Full pressure
Oil filter	Yes
Emission
Exhaust emissions (CO2 EU V)	792 g/kWh
Battery
Battery capacity	24 Ah
Battery type	Lead-Acid
Battery pack weight	7 kg
Battery manufacturer	Global
Cutting deck
Uncut circle	70 cm
Cutting width, min	103 cm
Cutting width, max	122 cm
Cutting height min	25 mm
Cutting height max	75 mm
Blade engagement	Electric clutch
Dimensions
Tyre dimensions, front	200/65-8
Tyre dimensions, rear	200/65-8
Wheelbase	95.8 cm
Ground clearance	110 mm
Base machine, length	206.6 cm
Base machine, width	96.4 cm
Base machine, height	117.8 cm
Gross weight towed	150 kg
Weight (excl. cutting equipment)	316 kg
Drive system
Transmission type	Hydrostatic
Transmission manufacturer, rear	Tuff Torq
Drive method	Dual pedal-operation
Speed forward max	9 km/h
Speed reverse max	4.4 mph
Speed reverse max	7 km/h
Transmission manufacturer, front	Tuff Torq
Transmission model, front	KTM13U
Transmission model, rear	K664U
Equipment
Seat suspension	Yes
Seat type	Premium
Hour meter type	Digital
Seat material	Vinyl
Seat back height	High
Foldable seat	Yes
Steering wheel type	Ergonomic - soft grip
Parking brake, type	Disc
Vibration
Vibration level steering wheel	2.67 m/s²
Vibration level seat	0.15 m/s²
Sound and Noise
Sound pressure level at operators ear	87 dB(A)
Sound power level, guaranteed (LWA)	102 dB(A)
Sound power level, measured	101 dB(A)
