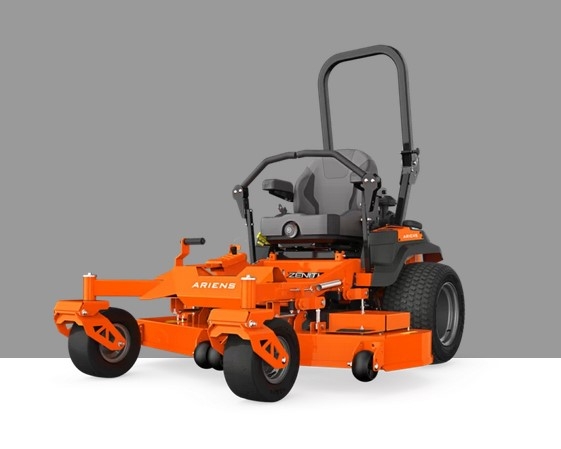

ARIENS Zenith 60 R Zero-turn Mower

991323

Cutting Width: 152 cm (60")

The power and convenience that municipal users want – With rear discharge



All our experience in one machine for daily, professional and local authority use. The maximum in performance, durability and comfort. You can rely on it. Every day.

The choice for real mowing professionals and large areas. The “R” on the ZENITH 60R stands for “rear-discharge”. The mown grass is discharged to the rear, between the wheels. Advantage: The mowed material is not thrown onto paths or into flower beds. Kawasaki professional FX730V engine, 726 cm3 with double air filter. Suspended wheel forks and cushioned, adjustable comfort seat for maximum driving comfort. Professional cutting deck with 152 cm cutting width. Can be used with side discharge or optional Muchkit. With ROPS and Profi warranty as standard.

  • ZENITH 60R features a 152cm (60″) fabricated, rear discharge deck constructed of strong 10-gauge steel
  • Powered by a professional-grade 726cc Kawasaki®​ FX730V V-Twin engine​​
  • Industry-leading, fully welded tubular steel frame
  • Constant Belt Tension (CBT) system extends belt life
  • ROPS fitted as standard for added protection for the operator
  • Front caster fork suspension and full suspension seat for a smoother ride
  • Foot-operate​d, vertical pin selector deck lift system with 15 cutting positions
  • Range of optional accessories is available
  • 4-year or 750 hours warranty

Technical Data

Model Number 991323
Engine Kawasaki® FX730V V-Twin OHV
Engine Displacement 726 cm³
Drive System Hydro-Gear® ZT-3200 Transaxles
Maximum engine Power 16.6 kW / 22.2 hp at 3,600 rpm.
Fuel Capacity 19.3 l
Max. Speed Forward / Backward 12,9 km/h / 6.4 km/h (8.0 mph / 4 mph)
Deck Type, Rear discharge / Side discharge /
Deck Material 3.6 mm sheet steel with double thickness around the blade support
Deck Construction welded
Deck Lift System foot operated
Number of blades 3
Spindle Material Forged Aluminium
Spindle Shaft Steel, StressProof®
Spindles drive V-belt
Spindle Clutch Electric Ogura®
Cutting Width 152 cm (60")
Cutting Hights 3.8 cm - 12.7 cm (1.5" - 5.0")
Cutting Positions 15
Wheels Front Axle x
Front Wheels 13 x 6.5-6
Rear Wheels (inch) 22 x 12-12
Seat Full suspension, adjustable high back seat w/ lumbar support and armrests
ROPS Rollover Protection
Hour Meter
Weight 423 kg
Length 201 cm
Width 157 cm
Height 125 cm w/ ROPS folded down; 184 cm w/ ROPS up
Limited Warranty Machine 4 years / 750 hrs.
Changes in technology, equipment and price are reserved. Of information or illustrations no claims can be derived.
