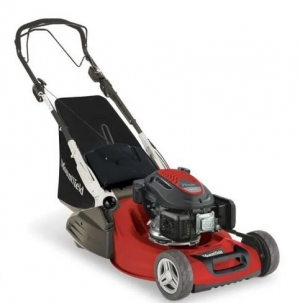

MOUNTFIELD SP505R V Petrol Lawn Mower

SP505R V

Maximum working area
750 ㎡
Driving
Self-propelled
Cutting method
Collecting


This is a premium mower with delightful features all powered by a 167cc Honda engine. It will produce superb cuts time after time. Perfect for the medium-sized lawn, this self-propelled mower has variable speed and durability as standard. This, in short, is a fantastic mower!
  • Powered by Honda 167 cc petrol engine
  • Rear Roller and Twinclip blade
  • Self-propelled with variable forward speed range 3.3 – 5.1 km/h
  • 48cm cutting width
  • One-motion adjustable handlebar
  • Large 80-litre textile collector

The SP505R V is a self-propelled mower, powered by the reliable and powerful Honda GCVx 170 OHV Autochoke petrol engine and heavy duty, high torque cone clutch transmission to the rear roller. Stepless speed changes from 3 - 4.9km/h are possible, and the eight cutting heights combine to ensure any grass situation can be tackled.

The 48cm wide cutting blade makes light work of medium-sized lawns, and the Mountfield Twinclip blade system ensures a superb cut. The system has four cutting edges – the first cutting edge reduces the initial length of grass with the second cutting edge reducing the
finished length down to the desired height. The fact that the clippings are finer than in other systems results in the collection capacity effectively being increased by 20%. And with the grass bag being a whopping 80-litres, it all means more mowing time.

The mower is also durable – a galvanised steel and aluminium chassis sees to that. And when everything is finished, a single click folds the handlebars down to one of three positions to ensure maximum use of shed or garage space.

This is a superb roller mower and is backed by a five-year extended warranty
(T&C's Apply)

What's in the box


SP505R V
Petrol lawn mower

Grass bag


Technical specs



EAN/UPC
8008984854581
SKU
294519043/M22
Power source
Petrol
Power
3.3 kW
Engine Brand
Honda
Engine model
GCVx170 OHV Autochoke
Displacement
167 cm³
Engine rotation speed
2900 rpm
RPM control
Fixed rpm
Starter
Recoil
Fuel tank capacity
0.95 l
Engine Oil tank capacity
0.4 l
Maximum working area
750 ㎡
Cutting method
Collecting
Cutting width
48 cm
Deck material
Galvanized steel
Cutting height adjustment
Centralized
Cutting height positions
8 positions
Cutting height range
13 - 65 mm
Driving
Self-propelled
Traction
Rear-roller drive
Speed forward
3 to 4.9 Km/h
Speed variator
Yes
Collector capacity
80 l
Handlebar type
Ergonomic 25 mm adj. by button + soft grip
Wheels
200/ROLLER grooved wheels on ball bearings
Vibe Control System (VCS)
Yes
Front handle
Yes
Adjustable handlebar
Yes
Foldable handlebar
Yes
Washing link
Yes
Collector type
Textile
Vibration level hand (m/s2)
4.2
Measured sound pressure level at operator ear dB(A)
86
Measured sound power level dB(A)
96
Guaranteed sound power level (LwA) - dB(A)
96
Pack weight
49.5 kg
Product length
1650 mm
Product width
570 mm
Product height
1160 mm
Weight
45 kg
