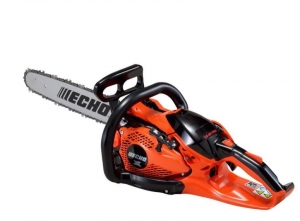

ECHO CS-2511 WES Rear Handled Chainsaw
CS-2511 WES
A new evolution in rear handle saws, the CS-2511WES weighs only 2.6kg and has a power output of 1.11kW. In terms of power to weight, no other chainsaw can compete. It retains the same ergonomics and benefits of the CS-2511TES (top handle) in a new, rear-handle form. Its ultra compact size and precision make it ideal for trimming, pruning, wood carving and other ground work
25.0cm³ professional grade ECHO engine. Designed and manufactured in Japan to the highest possible standards. The 2 stroke engine provides powerful cutting with low emissions and noise levels.
The combination of being ultra lightweight and powerful means you'll get through jobs faster with significantly less fatigue.
From cutting firewood to carving finely detailed works of art, you'll find that the CS-2511WES has the power and manoeuverability to be an incredibly versatile tool.
Features
Easy start
ECHO’s patented system for effortless starting.
Ultra light weight
Engineered to weigh less whilst retaining robust durability.
Power to weight
Super light-weight design with exceptional power.
Specifications
| Engine displacement (cm³) | 25.0 |
|---|---|
| Output (kw) | 1.1 |
| Output (ps) | 1.5 |
| Dry Weight (kg) (undefined) | 2.6 |
| Fuel Tank Capacity (ml) | 190 |
| Chain Oil Tank Capacity (ml) | 140 |
| Fuel Consumption At Maximum Engine Power (L/h) | 0.67 |
| Priming Pump | Yes |
| Ignition System | CDI |
| Start Assist System | ES-start |
| Chain Brake | Inertia |
| Choke w/ Automatic Fast Idle Release | Yes |
| Chain Tensioner | Side |
| Saw Chain Pitch (inch) | 3/8 |
| Guide Bar Gauge (inch) | 0.050 (0.043) |
| Applicable Bar Length (cm/inch) | 30 / 12 |
| Sound pressure level (dB(A)) | 99.2 |
| Sound power level (dB(A)) | 109.9 |
| CO² (g/kW・h) | 946 |
| Vibration Front handle/Rear handle (m/s²) | 4.5 / 4.6 |
