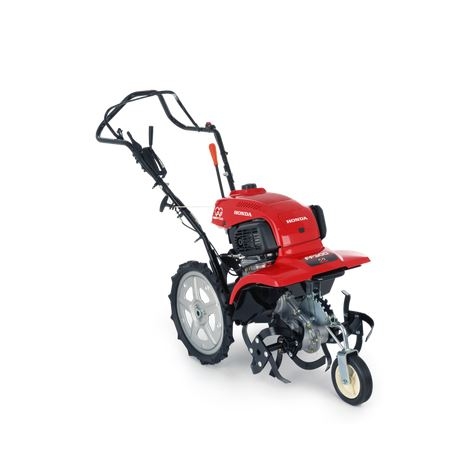

HONDA FF 300 Rotary Tiller

FF 300

A robust tiller with counter-rotating tines, gearbox, and one optional attachment

• Security handle
• Gear box
• Counter-rotating tines

Specifications

• Function

  Max tilling width (mm)	410
  Max tilling depth (mm)	160
  Forward speeds	3
  Reverse speeds	1
  Forward tool rotation speed (rpm)	0.15 - 1 m/s
  Reverse tool rotation speed (rpm)	0.3 m/s
  PTO rotation speed (low/high) (rpm)	131

• Dimensions

  Dimension (L x W x H) (mm)	1,465 x 465 x 1,010
  Dry weight (kg)	51

• ACC

  Rotors/tines supplied	Front counter rotation digging tines
  Counter rotating tines	Yes
  Wheels	Wheels & Tyres
  Ridger	Optional

• Engine

  Engine	4-stroke OHC
  Engine model	GXV57
  Engine displacement (cc)	57
  Engine net power (kW/rpm )	1.5/4.800
  Fuel tank capacity (Litres)	0.78
  Engine oil capacity (Litres)	0.26
  Starter	Recoil
  Drive clutch	Manual - expanding shoe
  Transmission	Constant mesh
  Final transmission	Wheels - constant mesh/Tines - chain & gear
  Differential / side clutch	Yes
  Sound pressure at operators ears (dB(A))	76
  Guaranteed sound power level (dB(A))	92
  Vibration (m/sec²)	4.5

• Handle

  Height adjustable handle

  Yes
