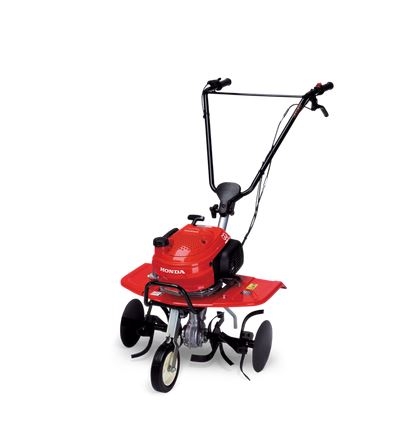

HONDA F 220 Mini Tiller

F 220

A portable tiller with 545mm tines and one attachment option

  • Foldable handle
  • Side discs
  • Transport wheel

Specifications

Function

Max tilling width (mm) 545
Max tilling depth (mm) 280
Forward speeds 1
Forward tool rotation speed (rpm) 130 rpm

Dimensions

Dimension (L x W x H) (mm) 1,280 x 615 x 1,035
Dry weight (kg) 30

ACC

Rotors/tines supplied 4 x 4 tooth digging tines
Wheels Front Transport
Side discs Yes
De-thatcher / scarifier Optional
Ridger Optional

Engine

Engine 4-stroke OHC
Engine model GXV57
Engine displacement (cc) 57.3
Engine net power (kW/rpm ) 1.5/4,800
Fuel tank capacity (Litres) 0.7
Engine oil capacity (Litres) 0.3
Starter Recoil
Drive clutch Manual - centrifugal
Transmission Epicyclic gearing
Final transmission Pinion & bevel gear
Sound pressure at operators ears (dB(A)) 75
Guaranteed sound power level (dB(A)) 92
Vibration (m/sec²) 6.4

Handle

Foldable handle Yes
Height adjustable handle Yes
Swing handle Yes
