TRACMASTER Duplex Scythe Cutter Bar BCS Implement

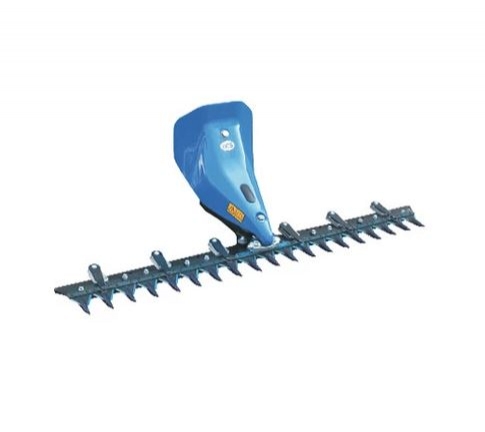

Duplex scythe cutter bar

The anti-clog serrated blades will cut through vegetation up to 1"diameter, and excel at cutting tall grass and wildflowers. For woody material including brambles and first year saplings the   Duplex Laser Scythe is recommended.

The duplex scythe cutter bar comprises two blades which both move from side to side, in opposite directions. This helps to reduce vibration and enables the scythe to cut faster than the standard scythe.

The duplex cutter bar has self adjusting spring-loaded tensioners which means less adjustment and maintenance than with the standard scythe, and riveted guards on the lower teeth that stop vegetation clogging the cutter bar.

The scythe makes a single scissor-like cut at the base of the vegetation, leaving the material whole. This is what makes the scythe the best tool for cutting long grass for haymaking and for cutting wildflowers.

Because the cutter bar is located out at the front of the machine it can get into areas that other mowers can't, such as under fences, round the base of trees, at the edge of water, and so on.

They are also very economical to run as the power unit should never be on more than one-quarter throttle so fuel consumption is very low.



Cutting Width 120cm (47") 150cm (59")
Cutting Height 2cm (¾") to 8cm (3¼")
No of Blades 15
Drive Movement Oil bath
Recommended Working Speed 1.0 to 4.0 km/hr
PTO Rotation Clockwise
RPM PTO Unit 825 / 990
Dimensions (L W H) 54 x 120 x 43cm 54 x 150 x 43cm
Weight 44kg 50kg

Which power units will the duplex scythe cutter bar fit to?

  120cm (47") 150cm (59")
BCS 710
BCS 728
BCS 738 ✔
BCS 740 ✔ ✔
BCS 750 ✔ ✔
BCS 770HY
 ✔ ✔
BCS 614
 BCS 615

BCS 618
 ✔*
BCS 630 ✔ ✔
BCS 630WS
 ✔ ✔
BCS 660HY
 ✔ ✔

 * GX200 engine only.



Are any couplers or toolbars needed?

If the power unit has the Implement Quick Coupling fitted then an Additional Coupler will be required.

Please note: The BCS 660HY and 750 power units have their own  specific coupler.
