TRACMASTER Cultivator Kit BCS Implement
Cultivator kit

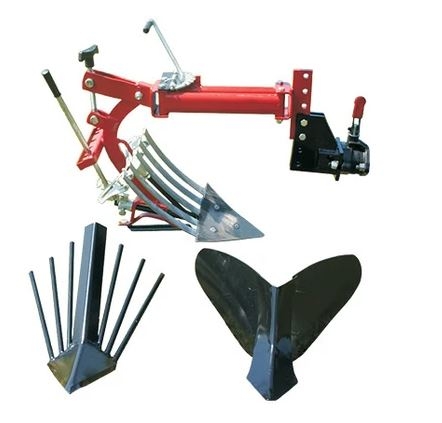

A very useful kit which includes a toolbar and frame complete with reversible plough, adjustable ridger, and potato lifter.
This versatile kit is manufactured by Ribas Agromecánica and includes a slatted mouldboard reversible plough, an adjustable ridger, and a potato lifter, complete with frame and toolbar.
It’s the ideal tool for smallholders and allotments as it offers great value for money. The implements are easily fitted to the frame, it takes just a few minutes to swap from one implement to another, and the frame connects to the toolbar which is then fitted to the power unit.
The kit is available in two sizes - 5" or 6". The 5" is suitable for the power units with 4.00x10 or 5.00x10 wheels, whilst the larger 6" kit is suitable for the 5.00x10 and 6.50x12 wheel power units.
The working depth and angle are easily controlled via levers on the frame.
| Implement | Reversible Plough | Adjustable Ridger | Potato Lifter |
| Working Width | 21cm | 20cm to 40cm | |
| Weight | 15kg |
Which power units will the cultivator kit fit to?
| 5" Kit | 6" Kit | |
| BCS 710 | ||
| BCS 728 | ✔ | |
| BCS 738 | ✔ | |
| BCS 740 | ✔ | ✔ |
| BCS 750 | ✔ | |
| BCS 770HY |
✔ | ✔ |
| BCS 614 |
||
| BCS 615 |
||
| BCS 618 | ||
| BCS 630 | ||
| BCS 630WS |
||
| BCS 660HY |
What are the minimum power unit requirements?
4.8hp petrol engine.
Two working speeds.
4.00 x 8 agricultural wheels.
Are any couplers or toolbars needed?
The cultivator kit is supplied with a frame and a toolbar coupler.
If the power unit has the Implement Quick Coupling fitted then a Blank Coupler will be required.
Is there anything else required?
Spade lug wheels may be beneficial and/or wheel weights if extra traction is needed.
