TRACMASTER Snow Blower BCS Implement

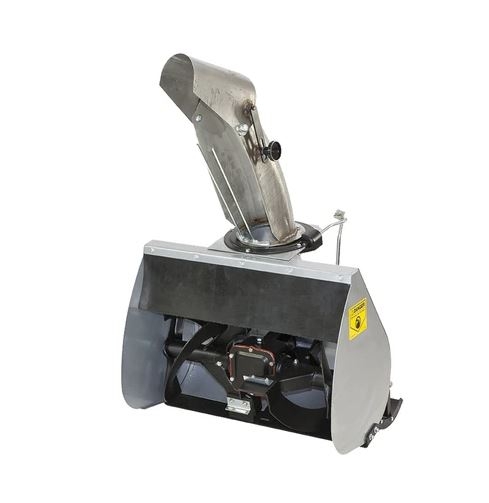

snow blower

The snow blower is the best implement for clearing deep snow and will outperform two-stage snow blowers with ease. In fact it's more like a snow cannon! It is available in either a 60cm (24") or 70cm (28") width and is ideal for all types of snow including frozen or wet snow.

The auger rotates at 1200rpm to break up snow up to 40cm deep and propel it up to 16m away.

The discharge chute rotates through 180° and can be easily angled from the operator's position to control the discharge direction. Simply turn the handle that is clipped to the handlebars to rotate the chute to the required position.

To regulate the distance the snow is discharged, the top flap on the discharge chute can be adjusted by turning the knob on the side to raise or lower the top flap. Having the flap higher discharges the snow a greater distance.

The working height of the snow blower can be easily adjusted through six positions by the rear mounted skids located at either side. The blower can be at ground level or it can be raised up to 5cm off the ground. This makes it the best tool for clearing snow on gravel driveways or paths.

Which power units will the snow blower fit to?

 *GX200 engine only.


Are any couplers or toolbars needed?

If the power unit has the Implement Quick Coupling fitted then an Additional Coupler will be required.

Please note: The BCS 750 power unit has its own specific coupler.

If fitted to the BCS 738 diesel, 740, 750, or 770HY then additional weight may need to fitted to the blower to balance the machine and implement.
