TRACMASTER Hay Rake BCS Implement

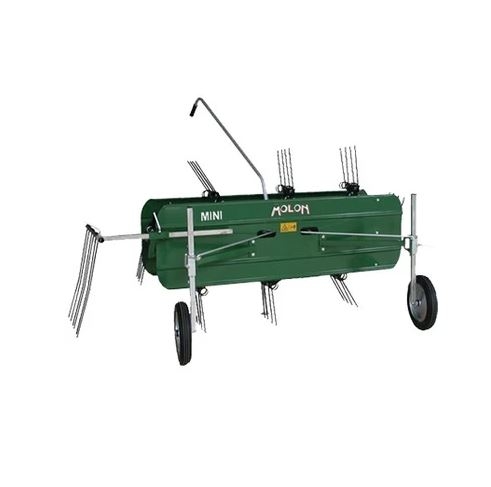

hay rake
hay rake
The hay rake is a fantastic tool for rowing-up meadow grass and wildflowers, especially after using the scythe and saves huge amounts of time over hand raking.
Manufactured by Repossi Macchine Agricole srl, the hay rake is available in two widths, 105cm (41") and 125cm (49cm) and with two steering options - a steering arm or front castor wheels.
The hay rake works by sweeping the grass into rows. It has a belt fitted with either 7 or 8 sets of 4-tooth combs (depending on the size) which sweep the grass up and over and into rows. The width and position of the rows is controlled by the adjustable arm located at the side of the hay rake.
It's a very efficient method of not only rowing-up but also turning over cut material to prevent it from rotting and enabling it to dry.
The steering option is dependent on the power unit; for the Two Wheel Tractors the steering arm is the best option, and for the Commander power units we recommend the castor wheels option.
| Hay Rake | |||
| Working Width | 100cm (40") | 120cm (47") | |
| Steering Mechanism | Steering Arm | Steering Arm | Castor Wheels |
| No of Combs | 7 | 8 | |
| Max Working Speed | 5 km/hr | ||
| Dimensions | 140cm (width) | 155cm (width) | |
| Weight | 80kg | 85kg | |
Which power units will the hay rake fit to?
| 105cm (41") | 125cm (49") | |
| BCS 710 | ✓ | |
| BCS 728 | ✓ | |
| BCS v738 | ✓ | ✓ |
| BCS 740 | ✓ | ✓ |
| BCS 750 | ✓ | ✓ |
| BCS 770HY |
✓ | ✓ |
| BCS 614 |
✓ | |
| BCS 615 |
✓ | |
| BCS 618 |
✓ | ✓* |
| BCS 630 | ✓ | ✓ |
| BCS 630WS |
✓ | ✓ |
| BCS 660HY |
✓ | ✓ |
*GX200 engine only.
Are any couplers or toolbars needed?
If the power unit has the Implement Quick Coupling fitted then anAdditionl Coupler will be required.
Please note: The BCS 660HY and 750 power units have their own specific coupler.
