TRACMASTER Dozer Blade BCS Implement

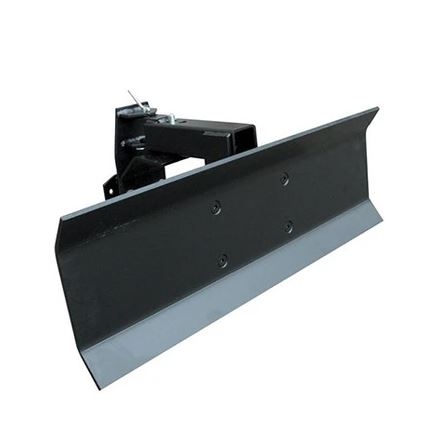

dozer blade
The dozer blade is ideal for moving and dozing gravel, sand, earth, and other small debris, and for levelling ground.
The blade can be easily angled through 5 positions - two left, two right or straight ahead - so debris can be pushed in the required direction.
The blade is made of ⅜" thick steel and the inverted position of the blade enables it to either push or pull material.
Unlike the snow plough, the dozer blade is mounted in a fixed position to avoid floating. This ensures maximum levelling performance.
Wheel weights are available as an optional extra if more traction is required.
Dozer Blade | |
Working Width | 100cm (40") |
Dimensions (L W H) | 32 x 100 x 30cm |
Weight | 55kg |
Which power units will the dozer blade fit to?
BCS 710 | ✓ |
BCS 728 | ✓ |
BCS 738 | ✓ |
BCS 740 | ✓ |
BCS 750 | ✓ |
BCS 770HY |
✓ |
BCS 614 |
✓ |
BCS 615 |
✓ |
BCS 618 |
✓ |
BCS 630 | ✓ |
BCS 630WS |
✓ |
BCS 660HY |
✓ |
Are any couplers or toolbars needed?
If the power unit has the Implement Quick Coupling fitted then a Blank Coupler will be required.
Please note: The BCS 660HY and 750 power units have their own specific coupler
If fitted to the BCS 738 diesel, 740, 750, 770HY, 630WS or 660HY then additional weight may need to fitted to the blade to balance the machine and implement.
Wheel weights may be needed for additional traction.
