TRACMASTER BIO 100 PTO Chipper Shredder BCS Implement
chipper shredder

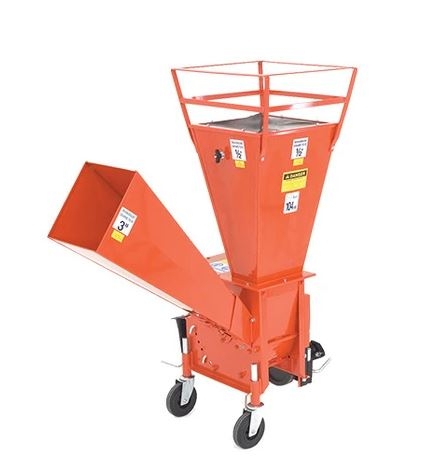

The BIO 100 PTO Chipper Shredder will easily turn branches and prunings up to 3" thick into recyclable mulch.
The chipper shredder, manufactured by Caravaggi s.r.l., has the benefit of separate infeed chutes for chipping and shredding.
The chipping chute has a high carbon steel chipping blade mounted on a 2cm thick flywheel for reducing branches and woody material up to 7cm in diameter.
The shredding chute is fitted with 28 swinging flails which will shred brush and green waste up to 1¼cm diameter.
The chipper shredder is easy to manoeuvre thanks to the two adjustable castor wheels, and for additional stability during operation there are two adjustable legs which can be locked in position.
For safety, the discharge area is protected by a grille and a rubber flap to help control the direction of the discharged material.
| PTO Chipper Shredder | |
| Chipping Capacity | 7cm (2¾") |
| Shredding Capacity | 1¼cm (½") |
| Chipping Blades | 1 |
| Shredding Blades | 28 |
| Flywheel Weight | 16¾kg |
| Dimensions (L W H) | 100 x 60 x 130cm |
| Weight | 95kg |
Which power units will the chipper shredder fit to?
| BCS 710 | |
| BCS 728 | |
| BCS 738 | ✓ |
| BCS 740 | ✓ |
| BCS 750 | ✓ |
| BCS 770HY |
✓ |
| BCS 614 |
|
| BCS 615 |
|
| BCS 618 |
✓* |
| BCS 630 | ✓ |
| BCS 630WS |
✓ |
| BCS 660HY |
✓ |
*GX200 engine only.
Are any couplers or toolbars needed?
If the power unit has the Implement Quick Coupling fitted then an Additional Coupler will be required.
Please note: The BCS 660HY and 750 power units have their own specific coupler.
