TRACMASTER Mini Baler BCS Implement

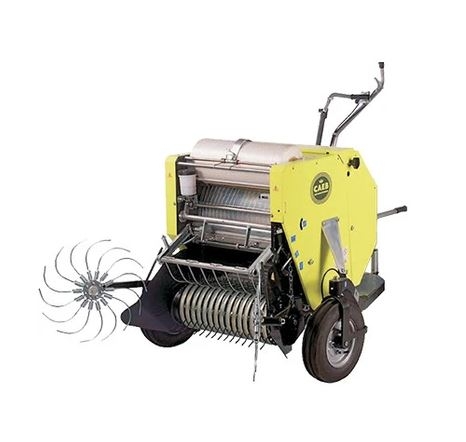

mini baler

Create mini round bales from vegetation that has been previously cut with the disc mower or scythe cutter bar quickly and easily with the mini baler attachment.



Manufactured by CAEB International s.r.l., the mini baler can easily bale up to 1.2 tons in good conditions, producing round bales just 52cm (20”) x 55cm (22”) in size and weighing between 20-25kg.

The bale is bound with a net wrap (supplied in a 1500m roll) which takes just a few seconds to wrap.

Each bale takes roughly 40 seconds to produce and the machine has a total output of approximately 1,500kg per hour. A bale counter helps you keep track of the number of bales produced and can be reset as required.

The bale core is less pressed than the outer to allow the hay to breathe and avoid mould forming. The outer is pressed to create a water-repellent protective layer.

Gathering wheels are available as an optional extra. These help to gather "stray" grass, effectively widening the gathering width of the machine.





Mini Baler
Baling Width 70cm (28") without optional gathering wheels
105cm (42") with optional gathering wheels
Bale Dimensions 52cm (20") x 55cm (22")
No of Bales Per Hour 50 to 80
Net Wrap 1500m long (included)
Pick Up Teeth 2 rows of 16 teeth
Max Weight of Bale 25kg (hay)
18kg (straw)
Min Working Speed 2.5 km/hr
Dimensions (L W H) 165 x 110 x 120cm
Weight 255kg (280kg with hay bale)

Which power units will the mini baler fit to?

BCS 710
 BCS 728
BCS 738
 BCS 740 ✓
BCS 750 ✓
 BCS 770HY
 ✓
BCS 614

BCS 615

BCS 618

BCS 630
BCS 630WS
 ✓
BCS 660HY
 ✓

*GX200 engine only.

Are any couplers or toolbars needed?

The mini baler is supplied complete with its own inbuilt coupling so nothing else is required, unless it is being fitted to the BCS 660HY or 750 in which case a specific coupler is required.

Contact us for latest prices, sales and service:

01295 211 790
