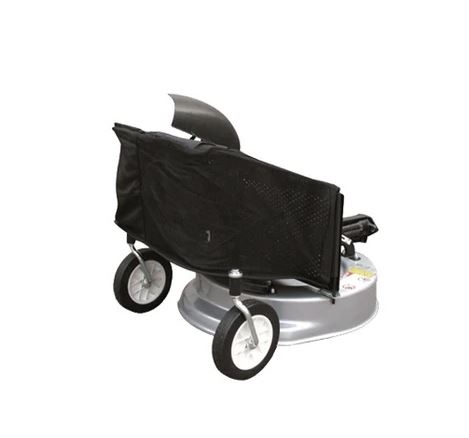

TRACMASTER Rotary Mower BCS Implement

rotary mower



 For cutting lawned areas the BCS rotary mowers are ideal. Available in two widths
56cm (22") and 100cm (40").
and with large collection bags, these mowers have many useful features.



Manufactured by BCS S.p.A. the mowers are fitted with easy to remove collection bags with the option of side discharge. Both mowers feature heat-treated steel gears in an oil bath for long life.

The cutting height can be easily adjusted by a simple lever on top of the deck from 50mm to 80mm (2" to 3”) on the 56cm model, and from 75mm to 130mm (3” to 5”) on the 100cm model.

The 56cm mower has a single blade and the 100cm has twin blades, both ensure a great cut even on wet grass. The 100cm model has swing tip blades which provide a neater finish.

The mower decks pivot on the power unit to follow ground contours and minimise scalping, and for easy manoeuvrability both mowers have swivelling front castor wheels.

Please note that there are two versions of the 56cm model with different front castor wheels depending on the power unit the mower is fitted to.



Rotary Mower
Cutting Width 56cm (22") 100cm (40")
Cutting Height 50mm (2”) to 80mm (3¼”) 75mm (3”) to 130mm (5”)
Cutting Blades 1 2
Discharge 60L Collection Bag or Side Discharge 160L Collection Bag or Side Discharge
Transmission Gears
PTO RPM 990
PTO Rotation Clockwise
Dimensions 64cm wide 102cm wide
Weight 32kg 91kg

Which power units will the rotary mower fit to?

  56cm (22") 100cm (40")
BCS 710
BCS 728 ✓
BCS 738 ✓
BCS 740   ✓*
BCS 750   ✓
 BCS 770HY
   ✓*
BCS 614

BCS 615
 ✓
BCS 618
 ✓
BCS 630   ✓
 BCS 630WS   ✓
BCS 660HY   ✓

* Requires an implement extension or implement quick release assembly.




Are any couplers or toolbars needed?

If the power unit has the Implement Quick Coupling fitted then an Additional Coupler will be required.

Please note: The BCS 660HY and 750 power units have their own specific coupler.
