TRACMASTER Laser® Scythe Cutter Bar BCS Implement

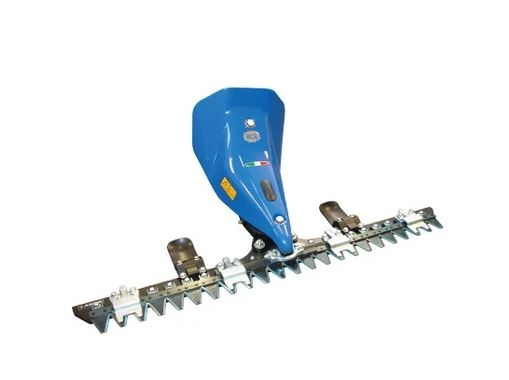

Laser® scythe cutter bar
80cm • 100cm • 115cm • 135cm • 155cm
Cut vegetation of any height or density up to 1” thick with the Laser® scythe cutter bar. It's ideal for managing wildflower meadows and cutting long grasses for haymaking.
The scythe has anti-clog serrated blades that will effortlessly cut through woody material up to 1” diameter, including brambles and even first year saplings. They also excel at cutting tall grass, bracken, wildflowers and more.
The Laser® scythe cutter bar comprises two blades. The top blade moves from side to side and is fitted with a number of serrated triangular teeth.
The scythe makes a single scissor-like cut at the base of the vegetation, leaving the material whole. This is what makes the scythe the best tool for cutting long grass for haymaking and for cutting wildflowers.
Because the cutter bar is located out at the front of the machine it can get into areas that other mowers can’t, such as under fences, round the base of trees, at the edge of water, and so on.
The cutting height is easily increased or decreased from ¾” (2cm) to 3¼” (8cm) by adjusting the skids that are positioned on each side of the cutter bar.
They are also very economical to run as the power unit should never be on more than one-quarter throttle so fuel consumption is very low.
| Scythe Cutter Bar | |||||||
| Cutting Width | 80cm (32") | 100cm (40") | 115cm (45") | 135cm (53") | 155cm (61") | ||
| Cutting Height | 2cm (¾") to 8cm (3¼") | ||||||
| No of Blades | 15 | 19 | 23 | 27 | 30 | ||
| Drive Movement | Short oil bath | Short oil bath | Short oil bath | Long oil bath | Short oil bath | Long oil bath | Long oil bath |
| Recommended Working Speed | 0.8 to 3.5 km/hr | ||||||
| PTO Rotation | Clockwise | ||||||
| RPM PTO Unit | 825 / 990 | ||||||
| Dimensions (L W H) |
51 x 80 x 43cm | 51 x 100 x 43cm | 51 x 115 x 43cm | 60 x 115 x 43cm | 51 x 135 x 43cm | 60 x 135 x 43cm | 60 x 155 x 43cm |
| Weight | 33kg | 36kg | 38kg | 42kg | 41kg | 45kg | 48kg |
Which power units will the scythe cutter bar fit to?
| 80cm (32") | 100cm (40") | 115cm (45") | 135cm (53") | 155cm (61") | |||||
| Short oil bath | Long oil bath | Short oil bath | Long oil bath | Short oil bath | Long oil bath | Short oil bath | Long oil bath | Long oil bath | |
| BCS 710 | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| BCS 728 | ✓ | ✓ | ✓ | ||||||
| BCS 738 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| BCS 740 | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| BCS 750 | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
|
BCS 770HY |
✓ | ✓ | ✓ | ✓ | ✓ | ||||
| BCS 614 | ✓ | ✓ | |||||||
| BCS 615 |
✓ | ✓ | ✓* | ||||||
| BCS 618 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓* | ✓* | ✓* | |
| BCS 630 | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| BCS 630WS |
✓ | ✓ | ✓ | ||||||
| 660HY |
✓ | ✓ | ✓ | ||||||
* GX200 engine only.
Are any couplers or toolbars needed?
If the power unit has the Implement Quick Coupling fitted then you will need an Additional Coupler.
Please note: The BCS 660HY and 750 power units have their own specific coupler
If the machine is being used on sloping banks then twin wheels or steel bank wheels are recommended to help improve traction and stability.
