TRACMASTER Tined Cultivator BCS Implement

tined cultivator

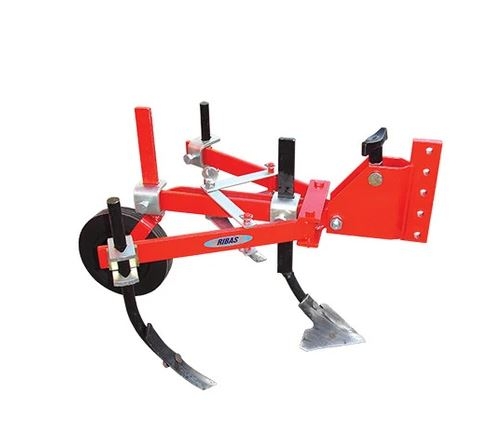

The tined cultivator, manufactured by Ribas Agromecánica, is ideal for inter-row weeding and for breaking up previously ploughed ground.



The tines drag through the soil helping to loosen and remove weeds making this is the ideal tool for inter-row weeding. It is easily adjustable for width and the working depth is controlled using the rear wheel.

The two larger models have the option of straight or spring tines, and there is a version of the 5-tined model available with self-regulating tines (they stay parallel when adjusting the width).

There are 7 variations of the tined cultivator:

   3-tined – adjustable – straight tines
   Working width: 20cm (8”) to 65cm (26”)

   5 tined – adjustable or self-regulating – straight or spring tines
   Working width: 25cm (10”) to 90cm (35”)

   7 tined – adjustable – straight or spring tines
   Working width: 30cm (12”) to 110cm (43”)



Tined Cultivator
No of Tines 3 5 7
Type Adjustable Adjustable Self Regulating Adjustable
Tines Straight Straight Spring Straight Spring Straight Spring
Working Width 20cm (8”) to 65cm (26”) 25cm (10”) to 90cm (35”) 30cm (12”) to 110cm (43”)
Dimensions (L W H)
Weight 17kg 26kg 26kg 36kg 32kg 42kg 38kg

Which power units will the tined cultivator fit to?

  3 Tined 5 Tined 7 Tined
  Adjustable Adjustable Self Regulating Adjustable
  Straight Tines Straight Tines Spring Tines Straight Tines Spring Tines Straight Tines Spring Tines
BCS 710
BCS 728 ✓
BCS 738 ✓ ✓ ✓ ✓ ✓ ✓ ✓
BCS 740   ✓ ✓ ✓ ✓ ✓ ✓
BCS 750   ✓ ✓ ✓ ✓ ✓ ✓
BCS 770HY   ✓ ✓ ✓ ✓ ✓ ✓
