TRACMASTER Trailed Ridger BCS Implement

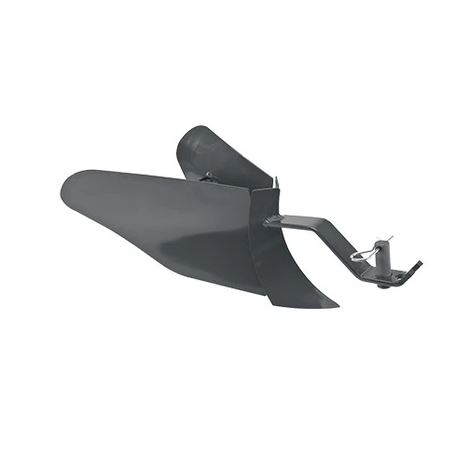

trailed ridger
Rotavate and ridge in one pass with the trailed ridger attached to the BCS rotavator.
The trailed ridger is ideal for “earthing up” and for creating ridges and furrows from 10cm (4”) to 23cm (9”) deep.
It slots into the back of the BCS rotavator attachment on the two wheel tractor, allowing it to be used at the same time as the rotavator. This means that the rotavator helps to propel the machine and the ridger through the earth so reducing the drag created by the ridger.
The working width of the trailed ridger is easily adjusted by placing a locking pin into a hole which will with push the wings out, or bring them in, depending on whether you are widening or narrowing the width. The width can be adjusted from 10cm (4”) to 30cm (12”).
| Trailed Ridger | |
| Working Width | 10cm (3") to 30cm (12") |
| Working Depth | Up to 23cm (9”) |
| Dimensions (L W H) | 52 x 59 x 20cm* |
| Weight | 8kg |
*with wings at maximum width
Which power units will the trailed ridger fit to?
| BCS 710 | |
| BCS 728 | |
| BCS 738 | |
| BCS 740 | |
| BCS 750 | |
| BCS 770HY |
