PORTEK Post Driver

075

Powered by a single cylinder, air-cooled, 2 stroke petrol engine the Portek Post Driver is a high-speed, heavy duty driving power tool, using a high impact hammer action to drive fencing posts, signs and tree stakes or pegs into the ground within a matter of seconds. The versatile 2 stroke engine enables the unit to be left idling even on its side in between driving in a series of fence posts.

Comes complete with the round post holder and adaptor rings to drive in round posts and stakes from 1″ to 4″ diameter.

Portek’s optional unique square and rectangular post holder accessory enables 3″ x 3″, 4″ x 3″ and 4″ x 4″ posts to be used

Features

Drives up to 4" round and square posts with ease



Max power and speed: 1500W / 9,000rpm



Max torque and speed: 2.5N.m / 5,000rpm



Impact frequency: 700 ~ 1,350rpm



Impact energy: 20 ~ 55J



Max power output: <1.42kW



Capacity: 52cc



x3 piling socket retainer options

Specifications

Size: 805 × 305 × 270mm
Power / Speed: 1500W / 9,000rpm
Engine: Single cylinder, air-cooled, 2 stroke petrol
Capacity: 52cc
Max. Power Output: <1.42kW
Fuel Mixture: 25:1 – petrol:oil
Nett Weight: 21.0 Kg

Pack Contents

x3 piling socket adaptors, lubricating grease (60g), instruction booklet and toolkit all in a strong ABS plastic wheeled carry case for easy transportation and storage.

NOW WITH LARGER WHEELS FOR EASY TRANSPORT

Piling Socket Sizes

70mm – 100mm (2.75” – 4”)
50mm – 69mm (2” – 2.75”)
20mm – 49mm (0.75” – 2”)

4″ Round Post Holder (Part No. 075/02):

Includes reducing adaptor

This post holder can be fitted to the Post Driver as an alternative to the original fitted post holder. It can be used for posts ranging from 3/4″ to 4″ diameter (when used with reducing adaptor and sizing rings).

It can be used without further attachments for 4″ diameter posts. For smaller posts the reducing adaptor should be screwed onto the end of the post holder, followed by a plastic sizing ring screwed on to the adaptor.

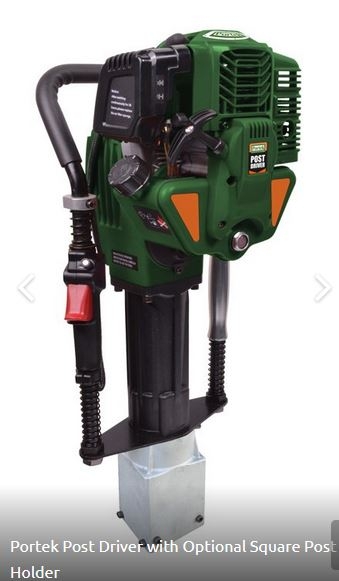

4″ Square Post Holder (Part No. 075/01):

An additional post holder is available which can be fitted to the Post Driver as an alternative to the standard. This post holder can be used for posts of 4″ square, 4×3″ and 3″ square in size.

It can be used without the bolts for 4″ posts. For smaller posts simply insert the reducing bolts through the bottom of the post holder casing, you can either use 2 bolts to allow a 4×3″ post or 4 bolts to allow a 3″ square post to be driven.
