Power/fuel type

Gasoline

Cutting width, min

94 cm

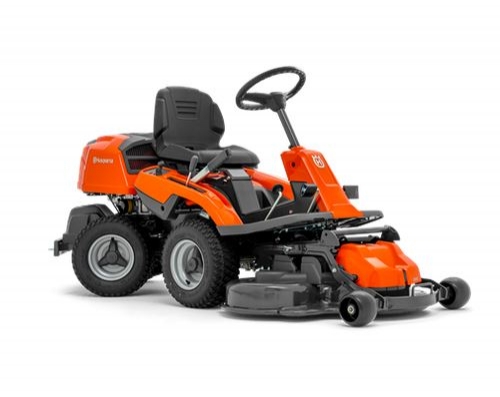

Ideal for taking care of larger lawns, this versatile ride-on lawn mower is efficient all year round. Husqvarna R214 T features a twin cylinder engine and can be fitted with a 94 cm or 103 cm combi cutting deck with two cutting options – BioClip® mulching for lawn fertilization and rear ejection cutting for higher, tougher grass. The rider is easy to operate, clean and maintain thanks to the cutting deck’s service position. A wide range of Husqvarna accessories is available.

Features

Adjustable steering wheel

For greater ergonomics and comfort a telescopic steering column lets the steering wheel height to be adjusted.

Hour meter

Helps you having control over service and maintenance intervals.

Four large wheels

16-inch wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.

Automatic blade engagement

The blades are engaged automatically, when you lower the cutting deck.

Optional Combi cutting deck

This Rider is delivered deckless and can be fitted with 94 or 103 cm Combi cutting decks for efficient BioClip® and rear ejection cutting.

Easy-access controls

Controls are easy accessible and designed for optimum user comfort.

Pedal-operated hydrostatic transmission

Easy speed and direction control with pedal-operated hydrostatic transmission. Separate pedals for forward and reverse.

Front-mounted cutting deck

Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.

Easy-access cutting height lever

The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.

Engine behind driver

Thanks to the rear-mounted engine, you get better overview of the mowing and less noise and emissions in the driver’s area.

Storage compartment

The open left-hand storage is easy to access while mowing.

Bottle holder

Convenient bottle holder for refreshments.

Unique articulated steering

The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.

Comfortable driver's position

With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable 'sit-in' feeling for the user.

Combi cutting deck with BioClip® (mulching)

BioClip® (mulching) provides perhaps the best cutting result on the market on frequently cut areas. The grass is cut into fine pieces that quickly turn into fertiliser.

Turn key start

Easy to get operating under any wetather conditions. No choking needed, just turn the key and go.

Versatile usage

A wide range of cutting decks and accessories makes our Riders exceptionally versatile, all year round.

Husqvarna Connect

With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play.

Service position

Service position on the cutting deck facilitates cleaning and service.

Specification

Engine	R 214T Art no: 970 54 22‑01
Power/fuel type	Gasoline
Net power at preset rpm Energy	12 kW
Cylinder displacement	586 cm³
Cylinders	2
Engine cooling	Air
Oil filter	Yes
Emission
Exhaust emissions (CO2 EU V)	778 g/kWh
Battery
Battery capacity	24 Ah
Battery type	Lead-Acid
Battery pack weight	7.2 kg
Battery manufacturer	Global
Cutting deck
Uncut circle	30 cm
Cutting width, min	94 cm
Cutting width, max	103 cm
Cutting height min	25 mm
Cutting height max	75 mm
Blade engagement	Automatic
Dimensions
Tyre dimensions, front	170/60-8
Tyre dimensions, rear	170/60-8
Wheelbase	89 cm
Ground clearance	120 mm
Base machine, length	194 cm
Base machine, width	88 cm
Base machine, height	113 cm
Gross weight towed	110 kg
Weight (excl. cutting equipment)	207 kg
Drive system
PTO (Power Take Off)	Belt-driven
Transmission type	Hydrostatic
Drive method	Dual pedal-operation
Speed forward max	9 km/h
Speed reverse max	3.7 mph
Speed reverse max	6 km/h
Equipment
Seat suspension	Yes
Hour meter type	Digital
Seat material	PU
Seat back height	Medium
Foldable seat	Yes
Steering wheel type	Comfort
Parking brake, type	Disc
Vibration
Vibration level steering wheel	1.9 m/s²
Vibration level seat	0.29 m/s²
Sound and Noise
Sound pressure level at operators ear	85.9 dB(A)
Sound power level, guaranteed (LWA)	99 dB(A)
Sound power level, measured	98.1 dB(A)
