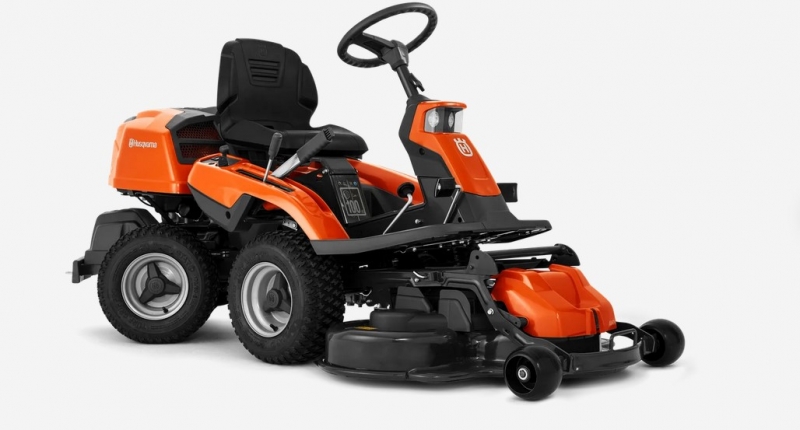

HUSQVARNA R 216T AWD Rider

R 216T AWD





Efficient versatility and control. This All-Wheel-Drive ride-on lawn mower is ideal for taking care of larger, more challenging lawns. Husqvarna R 216T AWD can be fitted with a 94 cm or 103 cm combi cutting deck for optional BioClip® mulching or rear ejection. All-Wheel-Drive provides traction on slippery, sloping ground, while articulated steering enables tight turns. Adjustable steering wheel and LED lights adds to the premium user experience.

Features

Pivoting rear axle

The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.

Adjustable steering wheel

For greater ergonomics and comfort a telescopic steering column lets the steering wheel height to be adjusted.

Hour meter

Helps you having control over service and maintenance intervals.

Four large wheels

Large wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.

Automatic blade engagement

The blades are engaged automatically, when you lower the cutting deck.

Transparent fuel tank

Large, transparent fuel tank makes it easy to check the fuel level.

Three-blade cutting deck

The three-blade cutting deck offers first-class trimming on both left and right side and gives the same uncut circle diameter regardless of direction.

Front-mounted cutting deck

Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.

Easy-access cutting height lever

The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.



Pedal-operated hydrostatic transmission

Speed and direction are managed by pedals, which lets you keep both hands on the steering wheel, for optimum driving control

Engine behind driver

Thanks to the rear-mounted engine, you get better overview of the mowing and less noise and emissions in the driver’s area.

Storage compartment

The open left-hand storage is easy to access while mowing.

Bottle holder

Convenient bottle holder for refreshments.

External fuel cap

Thanks to the external fuel cap, you don't have to open the engine hood when taking on more fuel. The extra wide fuel tank opening makes refueling even easier.

Combi cutting deck

The Combi cutting deck offers the versatility of two different cutting systems. Choose between BioClip® for lawn fertilisation and rear ejection for efficient mowing on areas with higher and rougher grass.

Unique articulated steering

The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.

Comfortable driver's position

With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable 'sit-in' feeling for the user.

Combi cutting deck with BioClip® (mulching)

BioClip® (mulching) provides perhaps the best cutting result on the market on frequently cut areas. The grass is cut into fine pieces that quickly turn into fertiliser.

LED head lights

LED lights for improved visibility and enlarged lighted area in darker conditions.

Easy access

The tilting hood and easy-access servicing points make maintenance and servicing easy.

Easy-access controls

Controls are easy accessible and designed for optimum user comfort.

Turn key start

Easy to get operating under any wetather conditions. No choking needed, just turn the key and go.

Versatile usage

A wide range of cutting decks and accessories makes our Riders exceptionally versatile, all year round.

All-Wheel-Drive (AWD)

All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on situation and ground

Husqvarna Connect

With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play.

Service position

Service position on the cutting deck facilitates cleaning and service



Specifications

Engine	R 216T AWD Art no: 970 54 24‑01
Power/fuel type	Gasoline
Net power at preset rpm Energy	12 kW
Motor/engine manufacturer	Husqvarna
Cylinder displacement	586 cm³
Cylinders	2
Engine cooling	Air
Engine lubrication type	Splash with pressure filtration
Oil filter	Spin on
Exhaust emissions (CO2 EU V)	778 g/kWh
Battery
Battery capacity	24 Ah
Battery type	Lead-Acid
Battery pack weight	7.2 kg
Battery manufacturer	Global
Cutting deck
Uncut circle	30 cm
Cutting width, min	94 cm
Cutting width, max	103 cm
Cutting height min	25 mm
Cutting height max	75 mm
Blade engagement	Automatic
Dimensions
Tyre dimensions, front	170/60-8
Tyre dimensions, rear	170/60-8
Wheelbase	89 cm
Ground clearance	85 mm
Base machine, length	194 cm
Base machine, width	88 cm
Base machine, height	113 cm
Gross weight towed	110 kg
Weight (excl. cutting equipment)	225 kg
Drive system
PTO (Power Take Off)	Belt-driven
Transmission type	Hydrostatic
Drive method	Dual pedal-operation
Speed forward max	9 km/h
Speed reverse max	3.7 mph
Speed reverse max	6 km/h
Equipment
Seat suspension	Yes
Hour meter type	Digital
Seat material	PU
Seat back height	Medium
Foldable seat	Yes
Steering wheel type	Comfort
Parking brake, type	Disc
Vibration
Vibration level steering wheel	0.29 m/s²
Vibration level seat	1.9 m/s²
Sound and Noise
Sound pressure level at operators ear	85.9 dB(A)
Sound power level, guaranteed (LWA)	99 dB(A)
Sound power level, measured	98.1 dB(A)
