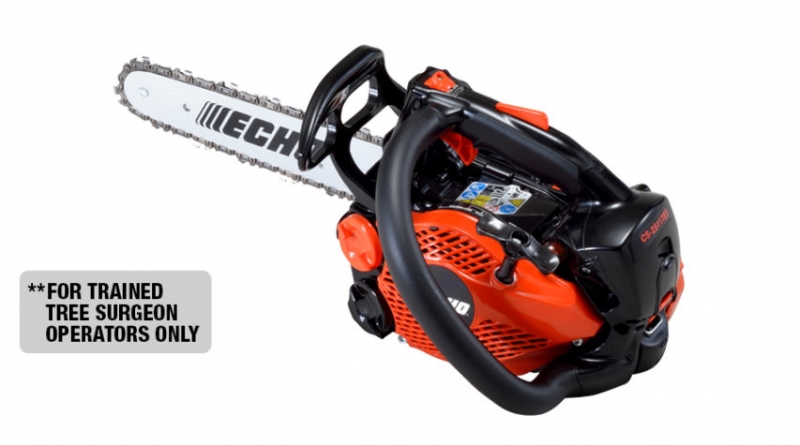

ECHO CS-2511 TES 10" Top Handle Chainsaw
CS-2511 TES
Compact, light weight and widely considered as the best top handle petrol chainsaw on the market, the ECHO® CS-2511TES top handle saw has become a favourite for the arborist, climbers and foresters from around the world.
The CS-2511TES top handle arborist chainsaw is ECHO’s lightest and most compact saw. Weighing just 2.3kg (dry weight w/o bar and chain) and with an ergonomic compact design, the saw is both highly manoeuvrable and can be used for long periods with little fatigue. At the same time, the engine produces 1.10kW giving the CS-2511TES a superior power-to-weight ratio.
Innovation is the essence of ECHO and although small, the CS-2511TES is packed with innovative features. Grouped controls and a new ergonomic top handle makes the CS-2511TES a great climbing saw. A swing-out lanyard ring is positioned for superior balance and easy climbing.
Specifications
| Engine displacement (cm³) | 25.0 |
|---|---|
| Output (kw) | 1.11 |
| Output (ps) | 1.51 |
| Dry Weight (kg) (undefined) | 2.3 |
| Fuel Tank Capacity (ml) | 190 |
| Chain Oil Tank Capacity (ml) | 140 |
| Fuel Consumption At Maximum Engine Power (L/h) | 0.68 |
| Priming Pump | Yes |
| Ignition System | CDI |
| Start Assist System | ES-start |
| Chain Brake | Inertia |
| Choke w/ Automatic Fast Idle Release | Yes |
| Chain Tensioner | Side |
| Saw Chain Pitch (inch) | 3/8 |
| Guide Bar Gauge (inch) | 0.50 |
| Applicable Bar Length (cm/inch) | 25/10 |
| Sound pressure level (dB(A)) | 99.7 |
| Sound power level (dB(A)) | 110.3 |
| CO² (g/kW・h) | 961 |
| Vibration Front handle/Rear handle (m/s²) | 3.5/4.0 |
Features
Lightweight
Engineered to weigh less whilst retaining robust durability.
Ergonomics
Designed to maximise efficiency and comfort.
Power to weight ratio
Super light-weight design with exceptional power.
