CUB CADET LR2 NR 76 Mini Rider
LR2 NR76
- Cutting width : 76cm (30'')
- Transmission : Hydrostatic
- Rated power kW/min -1 : 8.1 / 2,700
- Mowing area in m 2 /h: 2,500
- Grass bag capacity (l) : Standard 200
EAN: 4008423875508
MODEL NO : 13B221HD603

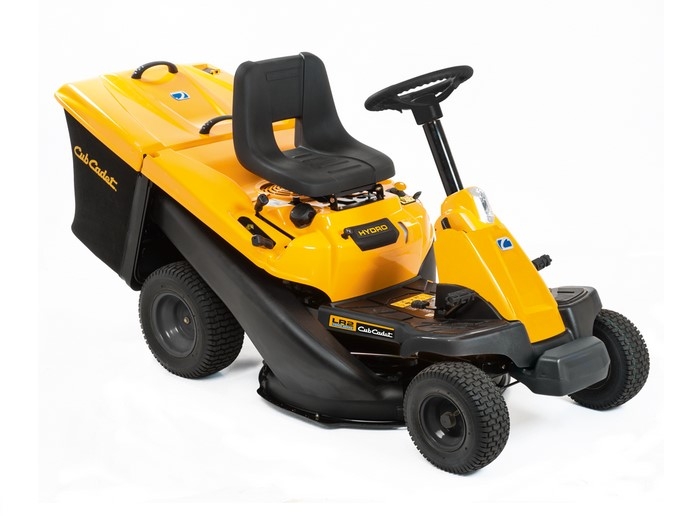

The LR2 NR76 mini-rider has a 76cm / 30" cutting deck width and is powered by a Cub Cadet engine and a hydrostatic transmission drive system. This Mini-Rider is able to get through garden grass with ease and with the easy entry step-through frame design and 46cm turning radius, this machine is as easy to use as it is manoeuvrable. The Intelligent Parking Assistance helps park your mini-rider in the garage with ease - reducing your speed while in reverse.
Specification
| ENGINE | LR2 NR76 | |||
| Engine | Cub Cadet OHV | |||
| Engine displacement (cm3) | 439 | |||
| Rated power (kW/min-1) | 8.1 / 2,700 | |||
| Cylinders | Single | |||
| Fuel tank capacity(l) | 4.9 | |||
| Lubrication | Fully pressurised automotive-style oil pump with spin-on oil filter | |||
| DRIVE SYSTEM | ||||
| Transmission | Hydrostatic | |||
| Air speed (max) | Infinitely variable | |||
| Control | Foot pedal control | |||
| CUTTING SYSTEM | ||||
| Mowing area (m2/h) | 2,500 | |||
| Cutting width | 76cm (30'') | |||
| Cutting height | 38–95 mm | |||
| Cutting options | 3-in-1 option | |||
| Number of blades | 1 | |||
| Deck Engagement | Manual lever control | |||
| Deck height positions | 5 positions | |||
| Wash nozzle / mulching plug | Standard/Optional | |||
| DISCHARGE SYSTEM | ||||
| Grass bag capacity (l) / accessory no. | Standard 200 /– | |||
| Bag lever / hardtop | 2 grips / Plastic | |||
| Bag full indicator / Grass Deflector | Standard / Optional | |||
| Grass bag capacity (l) | Standard 200 | |||
| FRAME | ||||
| Front axle | Steel | |||
| Front bumper | Standard | |||
| Turning radius (cm) | 46cm /18" | |||
| Wheels (front/rear) (Zoll) | 13 x 5 / 16 x 6.5 | |||
| Wheel bearings | Sleeve bearings | |||
| Frame | Easy entry frame | |||
| ELECTRIC | ||||
| Battery | 12V wet battery 115 CCA | |||
| Headlights | LED | |||
| COMFORT | ||||
| Seat type | High Back Comfort Seat | |||
| Seat adjustment | Tool-less | |||
| Steering wheel | Standard | |||
| Mow in reverse | Standard | |||
| Battery charger | (196-967-678) | |||
| DIMENSIONS | ||||
| Noise values (dB) | 88 / 98 / 100 | |||
| Vibration value body (K-factor) (m/s2) | 1.0 / 0.5 | |||
| Vibration value hand-arm (K-factor) (m/s2) | 5.0 / 1.5 | |||
| Dimensions (L / W / H) (cm) | 225 / 86 / 112 | |||
| Weight net (kg) | 172 | |||
