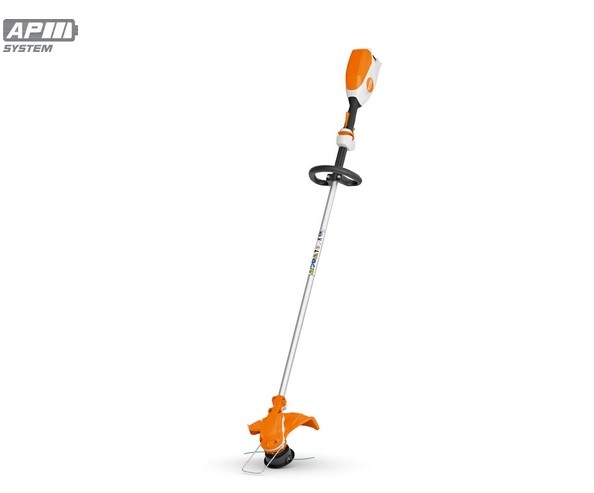

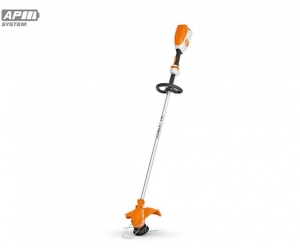

STIHL FSA 86 R Cordless Brushcutter - AP System
Powerful for mowing large gardens
Tool only
FSA 86 R
The FSA 86 is a powerful battery-powered brushcutter for home gardeners and semi-professional users, It can take on tough mowing, trimming, cutting and lawn edging work with ease and is part of the AP System of battery tools. With low noise emissions, the tool is ideal for work in noise sensitive areas, And it’s IPX4 rated too, meaning it can be used in all types of weather conditions.
The FSA 86 is supplied with the AutoCut C 6-2 mowing head which can be refilled without the need for tools. It can also be used with the PolyCut 6-2 mowing head which uses polymer cutting blades or the DuroCut 5-2 mowing head which uses serrated pieces of line for trimming denser grass or light scrub (both PolyCut and DuroCut heads are sold separately).
The brushcutter is fitted with a soft grip control handle which has variable speed adjustment, allowing you to control the speed of the mowing head whilst cutting. The aluminium shaft is especially sturdy too and an adjustable loop handle lets you set the FSA 86 to the working height you desire. A spacer is also included which lets you precisely trim around trees, shrubs and objects.
On a full charge with the AP 200 S battery, the FSA 86 has a working time of up-to 35 minutes with the AutoCut head and up-to 60 minutes with the PolyCut head. What’s more, this battery provides perfect balance when used, making work even more comfortable!
Features
Tool monitoring with the Smart Connector
INTEGRATION INTO STIHL CONNECTED. The tool is compatible with the Smart Connector, meaning it can be integrated into the STIHL connected system. Once you have attached a Smart Connector to the tool, after one-time commissioning it will record the tool’s operating hours and transmit them to the STIHL connected App via Bluetooth. In addition to displaying the operational time, the app also provides an overview of all necessary maintenance, ensuring that you do not overlook important upkeep and that your tool is always in a ready-to-use condition.
Softgrip handle with control lever
FOR COMFORTABLE WORK. The softgrip handle integrates the control lever for switching on and off as well as a control lever lock, to make it easier to operate your cordless brushcutter. Not only is it easy to grip, but it also absorbs some of the vibrations that arise during operation.
Loop handle
MORE FREEDOM OF MOVEMENT IN NARROW SPACES. The loop handle makes work in narrow spacers easier, such as clearing between bushes, shrubs or park benches. The practical handle position allows you to move your tool freely and to guide it easily and precisely, even in confined spaces.
Technical details
| Rated voltage | 36 V |
| Power | 0.5 kW 1) |
| Battery system | AP |
| Recommended battery | AP 200 |
| Device weight without battery | 3.3 kg 2) |
| Cutting circle diameter | 350 mm |
| IPX Rating | N/A |
| Max. battery working time AP 100 with line mowing head | 17 min 3) |
| Max. battery working time AP 100 with plastic blade mowing head | 30 min 3) |
| Max. battery working time AP 200 with line mowing head | 35 min 3) |
| Max. battery working time AP 200 with plastic blade mowing head | 60 min 3) |
| Max. battery working time AP 200 S with line mowing head | 35 min 3) |
| Max. battery working time AP 200 S with plastic blade mowing head | 60 min 3) |
| Max. battery working time AP 300 with line mowing head | 42 min 3) |
| Max. battery working time AP 300 with plastic blade mowing head | 70 min 3) |
| Max. battery working time AP 300 S with line mowing head | 52 min 3) |
| Max. battery working time AP 300 S with plastic blade mowing head | 85 min 3) |
| Max. battery working time AP 500 S with line mowing head | 62 min 3) |
| Max. battery working time AP 500 S with plastic blade mowing head | 102 min 3) |
| Max. battery working time AR 1000 with line mowing head | 115 min 3) |
| Max. battery working time AR 1000 with plastic blade mowing head | 185 min 3) |
| Max. battery working time AR 2000 with line mowing head | 170 min 3) |
| Max. battery working time AR 2000 with plastic blade mowing head | 270 min 3) |
| Max. battery working time AR 2000 L with line mowing head | 200 min 3) |
| Max. battery working time AR 2000 L with plastic blade mowing head | 320 min 3) |
| Max. battery working time AR 3000 L with line mowing head | 290 min 3) |
| Max. battery working time AR 3000 L with plastic blade mowing head | 480 min 3) |
| Device length without cutting tool | 172 cm |
| Sound pressure level | 77 dB(A) 4) |
| Sound power level | 91 dB(A) 4) |
| Vibration level, left | 3.7 m/s² 5) |
| Vibration level, right | 2 m/s² 5) |
