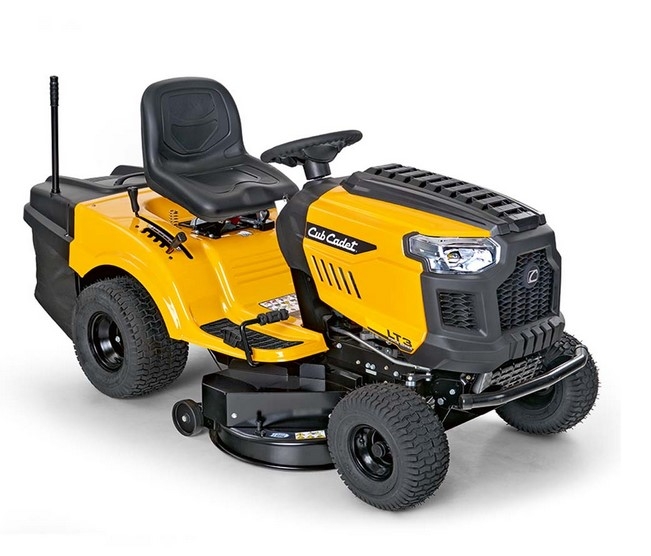

CUB CADET LT3 PR 105 Lawn Tractor
LT3 PR 105
- Cutting width : 105cm (41'')
- Transmission : Hydrostatic
- Rated power kW/min -1 : 12,7 / 2,7
- Mowing area in m 2 /h: 4.500
- Grass bag capacity (l) : 240
EAN: 4008423924343
MODEL NO : 13AJ71BN603
LT3 PR105 105cm/41
The LT3 PR105 features a 105cm/41” cutting deck width, able to be set through 5 deck height positions and cut from 30mm to 95mm. This lawn tractor is able to mow 4,500 m²h per hour and comes equipped a 240 Litre grass bag. Featuring the Cub Cadet Direct Collect system, where grass clippings are driven directly into the grass box giving superior collection, even in difficult conditions. Mulching requires an optional mulching kit. The grass box is easily emptied from the seat and the hydrostatic drive system is powered by a Cub Cadet OHV engine ensuring a smooth and comfortable ride.
Specifications
| ENGINE | LT3 PR105 | |||
| Engine | Cub Cadet OHV | |||
| Engine displacement (cm3) | 679 | |||
| Rated power (kW/min-1) | 12,7 / 2,7 | |||
| Cylinders | V-TWIN dual cylinder | |||
| Fuel tank capacity(l) | 3,8 | |||
| DRIVE SYSTEM | ||||
| Transmission | Hydrostatic | |||
| Air speed (max) | Infinitely variable (f/r) | |||
| Control | Foot pedal control | |||
| Cruise Control | – | |||
| CUTTING SYSTEM | ||||
| Mowing area (m2/h) | 4.500 | |||
| Cutting width | 105cm (41'') | |||
| Cutting height | 30-95 mm | |||
| Number of blades | 2 | |||
| Deck Engagement | Manual lever control | |||
| Deck height positions | 5 positions | |||
| Deck wheels | 2 | |||
| Wash nozzle / mulching plug | Standard/Optional (196-749A678) | |||
| DISCHARGE SYSTEM | ||||
| Grass bag capacity (l) / accessory no. | 240/– | |||
| Bag lever / hardtop | Telescopic handle / Plastic | |||
| Bag full indicator / Grass Deflector | – / (196-750A678) | |||
| FRAME | ||||
| Front axle | Heavy-duty cast-iron | |||
| Front bumper | Standard | |||
| Turning radius (cm) | 46cm (18 | |||
| Wheels (front/rear) (Zoll) | 15 x 6 / 18 x 9.5 | |||
| Wheel bearings | Sleeve bearings | |||
| Frame | Easy entry frame | |||
| ELECTRIC | ||||
| Headlights | Standard | |||
| COMFORT | ||||
| Seat type | High back | |||
| Seat adjustment | Tool-less | |||
| Steering wheel | Soft-Grip | |||
| Tool box / Cub holder | – / – | |||
| 12V Plug | ||||
| Mow in reverse | Standard | |||
| Battery charger | (196-967-678) | |||
| DIMENSIONS | ||||
| Noise values (dB) | 84,6 / 99 / 100 | |||
| Vibration value body (K-factor) (m/s2) | 0,4 / 0,2 | |||
| Vibration value hand-arm (K-factor) (m/s2) | 1,7 / 0,85 | |||
| Dimensions (L / W / H) (cm) | 225 / 110 / 103 | |||
| Weight net (kg) | 198 | |||
