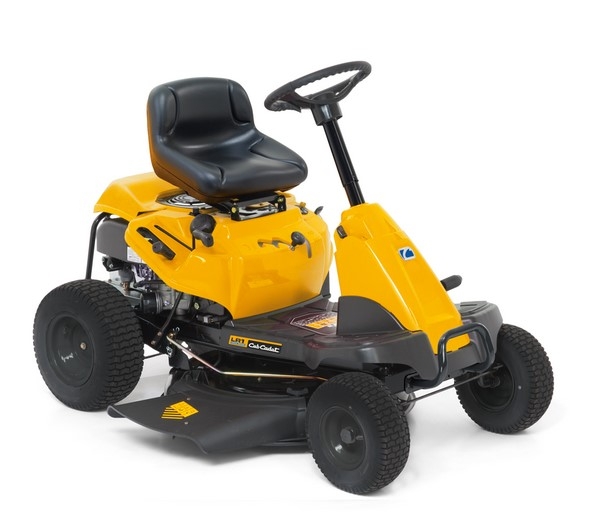

CUB CADET LR1 MS76 Mini Rider
LR1 MS76
- Cutting width : 76cm (30'')
- Transmission : Transmatic
- Rated power kW/min -1 : 8,6 / 3,2
- Mowing area in m 2 /h: 3
- Grass bag capacity (l) : Optional 115
EAN: 4008423892154
MODEL NO : 13A726JD603
The LR1 MS76 Side discharge Mini-Rider has fantastic features, like the space-saving design, great agility and outstanding cutting performance. With a space savings design, the LR Mini-Riders do not need much more space in your garage than a traditional walk behind lawnmower. This compact Mini-Rider with electric start is equipped with a powerful Cub Cadet engine and a 6 speed transmatic transmission allowing for shift-on-the-go speed control.
Specification
| ENGINE | LR1 MS76 | |||
| Engine | Cub Cadet OHV | |||
| Engine displacement (cm3) | 382 | |||
| Rated power (kW/min-1) | 8,6 / 3,2 | |||
| Cylinders | Single | |||
| Fuel tank capacity(l) | 4,9 | |||
| Lubrication | Fully pressurised automotive-style oil pump with spin-on oil filter | |||
| DRIVE SYSTEM | ||||
| Transmission | Transmatic | |||
| Air speed (max) | 6 (f/r), shift-on-the-go | |||
| Control | Foot pedal control | |||
| CUTTING SYSTEM | ||||
| Mowing area (m2/h) | 3 | |||
| Cutting width | 76cm (30'') | |||
| Cutting height | 38–95 mm | |||
| Cutting options | 3-in-1 option | |||
| Number of blades | 1 | |||
| Deck Engagement | Manual lever control | |||
| Deck height positions | 5 positions | |||
| Wash nozzle / mulching plug | Standard/Optional | |||
| DISCHARGE SYSTEM | ||||
| Grass bag capacity (l) / accessory no. | Optional 115 /(19A30014OEM) | |||
| Bag lever / hardtop | – / – | |||
| Bag full indicator / Grass Deflector | – / Optional | |||
| Grass bag capacity (l) | Optional 115 | |||
| FRAME | ||||
| Front axle | Steel | |||
| Front bumper | – | |||
| Turning radius (cm) | 46cm (18 | |||
| Wheels (front/rear) (Zoll) | 13 x 5 / 16 x 6.5 | |||
| Wheel bearings | Sleeve bearings | |||
| Frame | Easy entry frame | |||
| ELECTRIC | ||||
| Battery | 12V wet battery 115 CCA | |||
| Headlights | – | |||
| COMFORT | ||||
| Seat type | Comfort Seat | |||
| Seat adjustment | Screw | |||
| Steering wheel | Standard | |||
| Mow in reverse | – | |||
| Battery charger | (196-967-678) | |||
| DIMENSIONS | ||||
| Noise values (dB) | 88 / 98 / 100 | |||
| Vibration value body (K-factor) (m/s2) | 1 / 0,5 | |||
| Vibration value hand-arm (K-factor) (m/s2) | 5 / 1,5 | |||
| Dimensions (L / W / H) (cm) | 157 / 85 / 112 | |||
| Weight net (kg) | 127 | |||
