ECHO HCA-236 ES LW Long reach Hedge Trimmer

HCA-236 ES LW

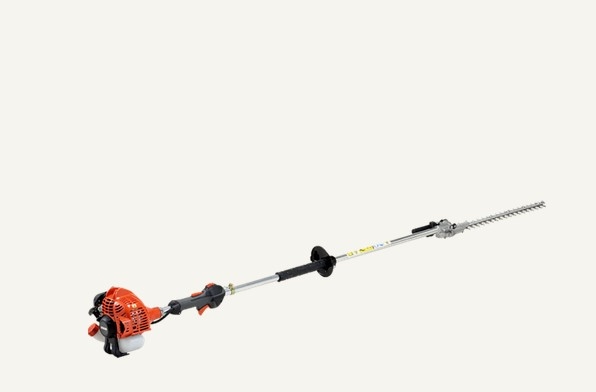

Ultra lightweight, professional long-reach articulating hedge trimmer.

It has a lightweight gearcase, a light and durable cutter blade assembly and easy one-handed blade angle adjustment.

Features

Professional engine

Featuring a professional grade 21.2 cm³ petrol engine for effortless trimming.

Compact design

Designed to be lightweight and ergonomic with perfect balance to maximise precision and minimise operator fatigue.

Adjustment system

The adjustment system enables the 519mm cutter to be rotated through 90°- it’s ideal for trimming tall and wide hedges.

Clean Finishing

Designed for clean and precise cutting.

Ergonomics

Designed to maximise efficiency and comfort.

Easy start engine

ECHO’s patented system for effortless starting.

Specification

CO² (g/kW・h) 1 1180
Sound power level (dB(A)) 107.6
Sound pressure level (dB(A)) 95.5
Stroke Rate (cuts/min) 3900
Vibration Front handle/Rear handle (m/s²) 4.1 / 3.7
Cutter Clearance Adjustable
Cutter Pitch (mm) 30
Cutter Type Double
Cutting Length (mm) 519
Dry Weight (kg) 6.2
Engine displacement (cm³) 21.2
Fuel Consumption At Maximum Engine Power (L/h) 0.45
Fuel tank capacity (l) 0.44
Output (kw) 0.7
Output (ps) 1.0
Overall Length (mm) 2407
Start Assist System ES-start



1
This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.
