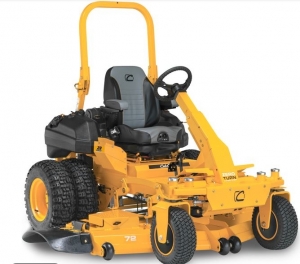

CUB CADET Z9 183id PRO Series Zero Turn Mower
Z9 183id
- Cutting width : 183
- Transmission : Parker HTG 16 cc
- Rated power kW/min -1 : n.a. / n.a.
- Mowing area in m 2 /h: 18000
- Grass bag capacity (l) : Side discharge
MODEL NO : 53ALHMUY603
The new Z-Turn Z9 183id is a commercial zero-turn mower with extremely wide double tyres – developed to effortlessly tackle even the steepest slopes of up to 25° (46 %). In addition, it has an extremely robust and multi-reinforced steel cutting deck, outstanding mowing performance and air-cushioned seating comfort. This top-of-the-line zero turn is ideal for commercial users and owners of large properties with challenging terrain.
BEST MOWING PERFORMANCE
Thanks to the outstanding technical equipment, straight mowing lines, zero radius turns and mowing on steep slopes are easy.
WORK EFFORTLESSLY AND DRIVE COMFORTABLY
With the comfort features, you can enjoy a relaxed ride all day long. With the exclusive air ride seat, you can adjust the seat firmness according to your personal preferences.
ELECTRONICALLY ADJUSTABLE CUTTING DECK
Adjust the cutting deck to the specific requirements with just the touch of a button.
UNMATCHED CLIMBING ABILITIES
EExtremely wide double tires and the all-wheel steering ensure maximum stability and precision even on steep slopes with inclines of up to 25°.
POWER AND ECONOMY COMBINED
Thanks to the electronic direct injection, the robust
Kawasaki engine combines maximum performance with
comparatively low fuel consumption.
RELIABLE AND SAFE
Cub Cadet gives you a guarantee of 1.000 working
hours or 3 years* on the new Z9 183id.
Specifications
| ENGINE | Z9 183id | |||
| Engine | Kawasaki FX1000V EFI | |||
| Engine displacement (cm3) | 999 | |||
| Rated power (kW/min-1) | n.a. / n.a. | |||
| Cylinders | V-TWIN dual cylinder | |||
| Fuel tank capacity(l) | 2 x 34 l, with fuel indicator | |||
| Lubrication | Pressure oil lubrication | |||
| DRIVE SYSTEM | ||||
| Drive | Dual Hydrostatic | |||
| Transmission | Parker HTG 16 cc | |||
| Speed | 19,5 km/h (drive) / 10,0 km/h (reverse) | |||
| Control | Dual foot pedal control | |||
| Cruise Control | – | |||
| CUTTING SYSTEM | ||||
| Mowing area (m2/h) | 18000 | |||
| Cutting width | 183 | |||
| Cutting height | 26–127 mm | |||
| Cutting options | 2-in-1 | |||
| Number of blades | 3 | |||
| Deck Engagement | Electric PTO | |||
| Cutting height adjustment | 17 positions | |||
| Deck wheels | 4 + 2 roller | |||
| Mulch kit | Standard | |||
| DISCHARGE SYSTEM | ||||
| Grass bag capacity (l) | Side discharge | |||
| Grass Deflector | Standard | |||
| FRAME | ||||
| Front bumper / Rear bumper | – / Standard | |||
| Turning radius (cm) | 0 | |||
| Wheels (front/rear) (Zoll) | 16 x 6,5 / 24 x 12 | |||
| Wheel bearings | n.a. | |||
| ELECTRIC | ||||
| Battery | 12 V / 230 CCA | |||
| Headlights | – | |||
| Hourmeter / Serviceminder | Standard / Standard | |||
| Safety systems | Rollover bar | |||
| COMFORT | ||||
| Seat type | High back with armrests, individually adjustable | |||
| Seat adjustment | Quick adjuster lever | |||
| Steering wheel | Soft-Grip | |||
| Tool box | Standard | |||
| Mow in reverse | Standard | |||
| Battery charger | – | |||
| DIMENSIONS | ||||
| Noise values (dB) | 93 / 103 / 105 | |||
| Vibration value body (K-factor) (m/s2) | 1 / 0,5 | |||
| Vibration value hand-arm (K-factor) (m/s2) | 5 / 1,5 | |||
| Dimensions (L / W / H) (cm) | 226 / 185 / 131 | |||
| Weight net (kg) | 840 | |||
