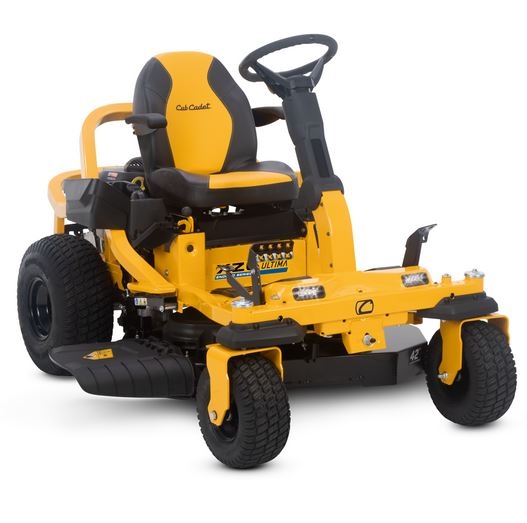

CUB CADET XZ6 S107 Zero Turn Mower
XZ6 S107
- Cutting width : 107
- Transmission :
- Rated power kW/min -1 : 14,9 / n.a.
- Mowing area in m 2 /h: 10
- Grass bag capacity (l) : Optional 230
EAN: 4008423922578
MODEL NO : 17AAGBYE603
STEERING THE WAY FORWARD
The XZ6 S107 Ultima ENDURO will give you unmatched steering capabilities in challenging terrains. You can mow easily in comfort. The industry-leading SynchroSteer® technology for full control of the front wheels, combined with a powerful Cub Cadet engine makes the XZ6 S107 the ideal machine for large lawn maintenance. BUILT WITH STRENGTH Our continuous lightweight tubular steel frame is designed for strength and durability. A fabricated mowing deck ensures unsurpassed mowing performance. EXCEPTIONALLY LOW VIBRATION With ergonomic soft grips and rubber floor mats. OPEN FRAME DESIGN Hinged/removable floor pan allowing quick access to the deck and engine for ease of maintenance.
Specifications
| ENGINE |
XZ6 S107 |
|
| Engine |
Cub Cadet |
| Engine displacement (cm3) |
679 |
| Rated power (kW/min-1) |
14,9 / n.a. |
| Cylinders |
V-TWIN dual cylinder |
| Fuel tank capacity(l) |
13,25 |
| Lubrication |
Full-pressure with spin-on oil filter |
|
| DRIVE SYSTEM |
|
|
| Drive |
Dual Hydrostatic |
| Transmission |
|
| Speed |
|
| Control |
Dual foot pedal control |
| Cruise Control |
-0 |
|
| CUTTING SYSTEM |
|
|
| Mowing area (m2/h) |
10 |
| Cutting width |
107 |
| Cutting height |
25–114 mm |
| Cutting options |
3-in-1 option |
| Number of blades |
2 |
| Deck Engagement |
Electric PTO |
| Cutting height adjustment |
15 positions |
| Deck wheels |
2 |
| Mulch kit |
Standard |
|
| DISCHARGE SYSTEM |
|
|
| Grass bag capacity (l) |
Optional 230 |
| Grass Deflector |
Standard |
|
| FRAME |
|
|
| Front bumper / Rear bumper |
– / – |
| Turning radius (cm) |
0 |
| Wheels (front/rear) (Zoll) |
13 x 6,5 / 20 x 8 |
| Wheel bearings |
Sleeve bearings |
|
| ELECTRIC |
|
|
| Battery |
12 V / 230 CCA |
| Headlights |
– |
| Hourmeter / Serviceminder |
Standard / Standard |
| Safety systems |
Operator presence, brake switch, deck clutch switch |
|
| COMFORT |
|
|
| Seat type |
High back with arm rests |
| Seat adjustment |
Quick adjuster lever |
| Steering wheel |
Soft-Grip, tilt steering column |
| Tool box |
Standard |
| Mow in reverse |
Standard |
| Battery charger |
(196-967-678) |
|
| DIMENSIONS |
|
|
| Noise values (dB) |
n.a / n.a / n.a |
| Vibration value body (K-factor) (m/s2) |
1 / 0,5 |
| Vibration value hand-arm (K-factor) (m/s2) |
5 / 1,5 |
| Dimensions (L / W / H) (cm) |
203 / 132 / 114 |
| Weight net (kg) |
267 |
|
|
|
