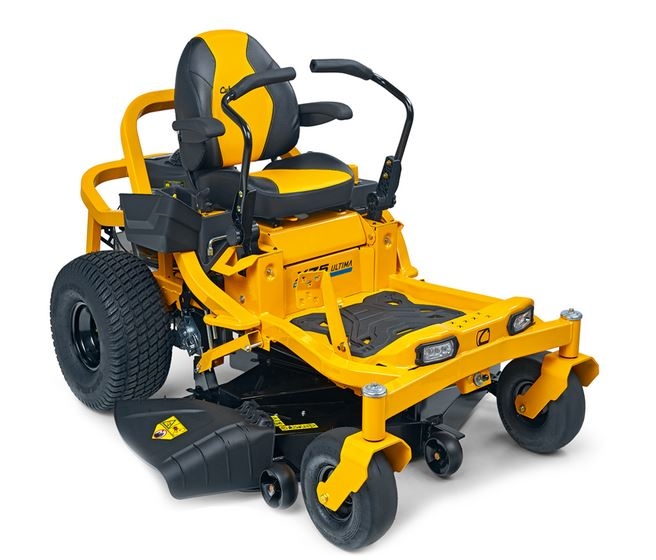

CUB CADET XZ5 L137 Zero-Turn Mower
XZ5 L137
- Cutting width : 137
- Transmission : Dual Hydrostatic
- Rated power kW/min -1 : 14,7 / 2,9
- Mowing area in m 2 /h: 12,5
- Grass bag capacity (l) : Optional 230
EAN: 4008423913163
MODEL NO : 17AIEACI603
XZ5 L137
The latest steering lever lap bar technology combined with the extremely robust construction of heavy-duty components and high-performance Kawasaki engine makes the XZ5 L137 the ideal professional machine for large lawn maintenance. The 137cm / 54" cutting deck will easily mow an area of 12,500 m²h. The open frame design allows quick and easy access to the deck and engine for ease of maintenance. With exceptionally low vibration, individually adjustable comfort seats and soft grips - owner/operator comfort is at the forefront of the XZ5 L137.
Specification
| ENGINE | XZ5 L137 | |||
| Engine | Kawasaki OHV | |||
| Engine displacement (cm3) | 726 | |||
| Rated power (kW/min-1) | 14,7 / 2,9 | |||
| Cylinders | V-Twin dual cylinder | |||
| Fuel tank capacity(l) | 13,25 | |||
| Lubrication | Full-pressure with spin-on oil filter | |||
| DRIVE SYSTEM | ||||
| Drive | Dual Hydrostatic | |||
| Transmission | Dual Hydrostatic | |||
| Speed | Up to 12 km/h | |||
| Control | Control lever | |||
| Cruise Control | – | |||
| CUTTING SYSTEM | ||||
| Mowing area (m2/h) | 12,5 | |||
| Cutting width | 137 | |||
| Cutting height | 25–115 mm | |||
| Cutting options | 3-in-1 Option | |||
| Number of blades | 3 | |||
| Deck Engagement | Electric PTO | |||
| Cutting height adjustment | 15 positions | |||
| Deck wheels | 3 | |||
| Mulch kit | Standard | |||
| DISCHARGE SYSTEM | ||||
| Grass bag capacity (l) | Optional 230 | |||
| Grass Deflector | Standard | |||
| FRAME | ||||
| Front bumper / Rear bumper | – / – | |||
| Turning radius (cm) | 0 | |||
| Wheels (front/rear) (Zoll) | 13 x 6.5 / 20 x 12 | |||
| Wheel bearings | – | |||
| ELECTRIC | ||||
| Battery | 12 V / 230 CCA | |||
| Headlights | Standard | |||
| Hourmeter / Serviceminder | Standard / Standard | |||
| Safety systems | – | |||
| COMFORT | ||||
| Seat type | High back with armrests | |||
| Seat adjustment | Quick adjuster lever | |||
| Steering wheel | 2-way adjustable lap bars with comfort grips | |||
| Tool box | Standard | |||
| Mow in reverse | Standard | |||
| Battery charger | – | |||
| DIMENSIONS | ||||
| Noise values (dB) | 93 / 103 / 105 | |||
| Vibration value body (K-factor) (m/s2) | 1 / 0,5 | |||
| Vibration value hand-arm (K-factor) (m/s2) | 5 / 1,5 | |||
| Dimensions (L / W / H) (cm) | 203 / 164 / 117 | |||
| Weight net (kg) | 312 | |||
