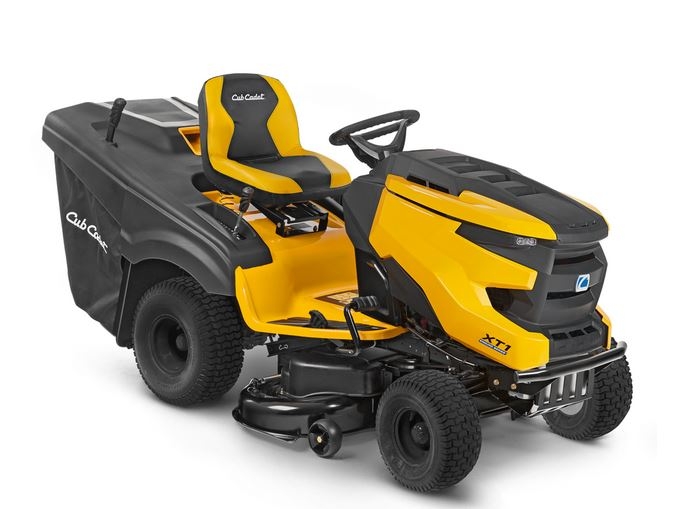

CUB CADET XT1 OR95 Lawn Tractor
XT1 OR95
- Cutting width : 95cm (38'')
- Transmission : Hydrostatic
- Rated power kW/min -1 : 6,2 / 2,1
- Mowing area in m 2 /h: 5.500
- Grass bag capacity (l) : 320
EAN: 4008423872217
MODEL NO : 13C8A1CB603
XT1 Series 95cm/38
The solid, stable and durable frame features an e-coating corrosion defence system providing the ultimate stability and protection. The cutting blades are activated with the simple pull of a button and the height of the cut can be adjusted through a wide range of 25mm to 100mm. The hydrostatic drive system ensures a smooth ride and is very simple to operate, just push the pedal and go. The XT1 OR95 features a unique anti-clog system, designed to transport the grass clippings into the grass bag in the most efficient and effective way. Optional rear grass deflector is also available for use when collection is not required.
Specification
| ENGINE | XT1 OR95 | |||
| Engine | Cub Cadet | |||
| Engine displacement (cm3) | 547 | |||
| Rated power (kW/min-1) | 6,2 / 2,1 | |||
| Cylinders | Single | |||
| Fuel tank capacity(l) | 11,4 | |||
| DRIVE SYSTEM | ||||
| Transmission | Hydrostatic | |||
| Air speed (max) | Infinitely variable (f/r) | |||
| Control | Foot pedal control | |||
| Cruise Control | Standard | |||
| CUTTING SYSTEM | ||||
| Mowing area (m2/h) | 5.500 | |||
| Cutting width | 95cm (38'') | |||
| Cutting height | 25-100 mm | |||
| Number of blades | 2 | |||
| Deck Engagement | Electric PTO | |||
| Deck height positions | 12 positions | |||
| Deck wheels | 4 balls deck wheels | |||
| Wash nozzle / mulching plug | Standard/(196-551-000) | |||
| DISCHARGE SYSTEM | ||||
| Grass bag capacity (l) / accessory no. | 320/(196-555-603 Anti-Dust-System) | |||
| Bag lever / hardtop | Rounded ergo telescopic handle / Plastic | |||
| Bag full indicator / Grass Deflector | Deluxe w Blade Shutoff / (196-552-A000) | |||
| FRAME | ||||
| Front axle | Heavy-duty cast-iron | |||
| Front bumper | Single Tube | |||
| Turning radius (cm) | TIGHT TURN 38cm | |||
| Wheels (front/rear) (Zoll) | 15 x 6 Turf Saver / 18 x 8.5 | |||
| Wheel bearings | Sleeve bearings | |||
| Frame | Fully robotically-welded frame | |||
| ELECTRIC | ||||
| Headlights | LED | |||
| COMFORT | ||||
| Seat type | High Back Seat Cub Cadet | |||
| Seat adjustment | Lever, angled, 10 slide | |||
| Steering wheel | Ergo Soft-Grip | |||
| Tool box / Cub holder | Standard / Standard | |||
| 12V Plug | ||||
| Mow in reverse | Standard | |||
| Battery charger | – | |||
| DIMENSIONS | ||||
| Noise values (dB) | 88 / 98 / 100 | |||
| Vibration value body (K-factor) (m/s2) | 1 / 0,5 | |||
| Vibration value hand-arm (K-factor) (m/s2) | 5 / 1 | |||
| Dimensions (L / W / H) (cm) | 245 / 100 / 118 | |||
| Weight net (kg) | 235 | |||
